Yard soil cleaning lines

Ref. DET (Yard)

Solutions adapted to your needs, Eliminate the soil from your garlic for better drying and an optimal quality of the product.

Ideal for difficult harvest conditions, our soil cleaning line will enable you to eliminate the soil in the best way to preserve your garlic and make drying easier.

>  Watch the video


Type: DET (yard)

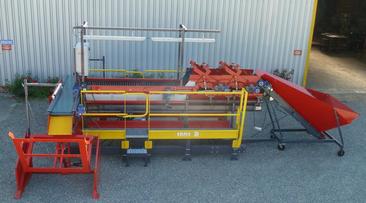

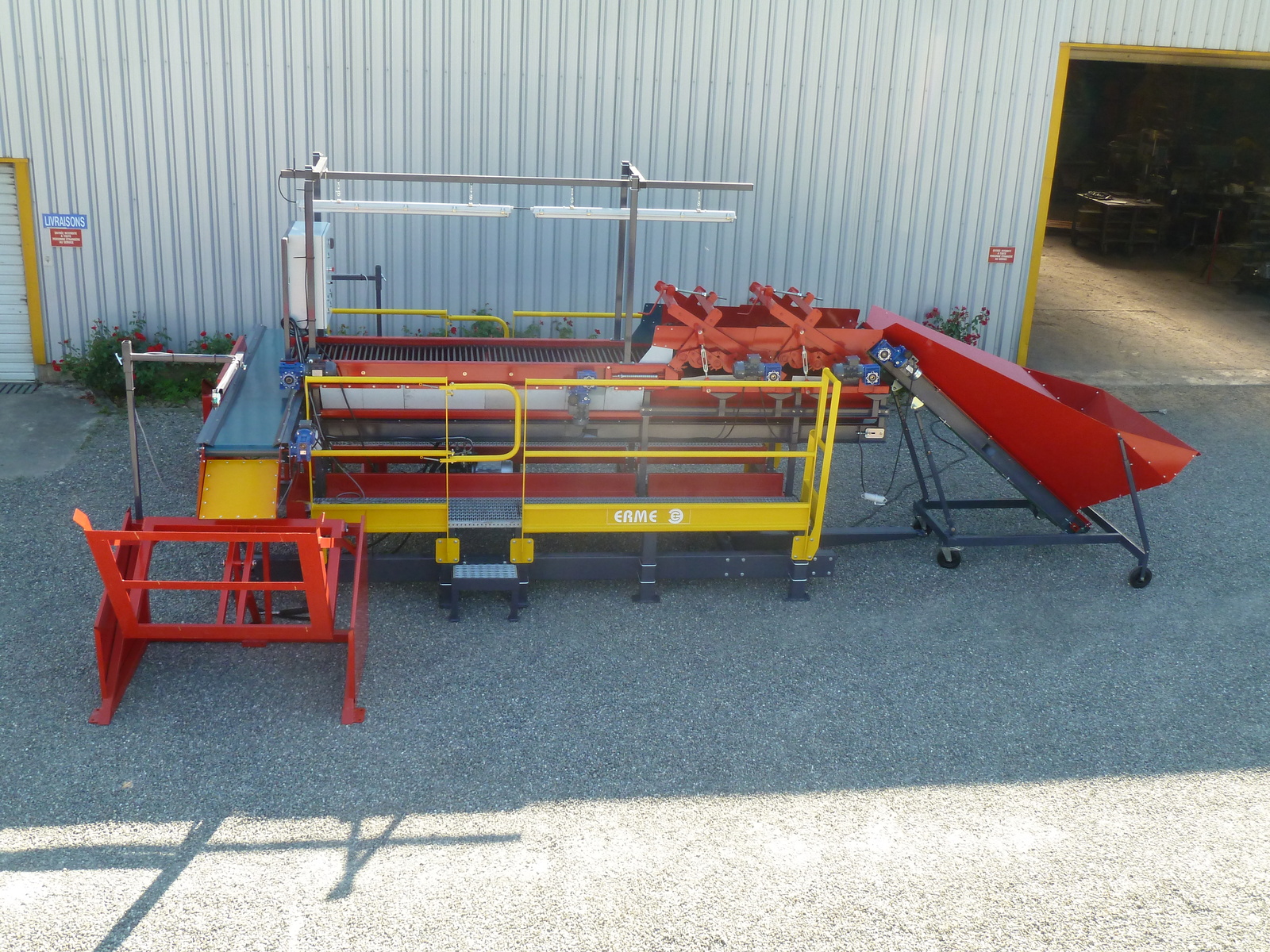

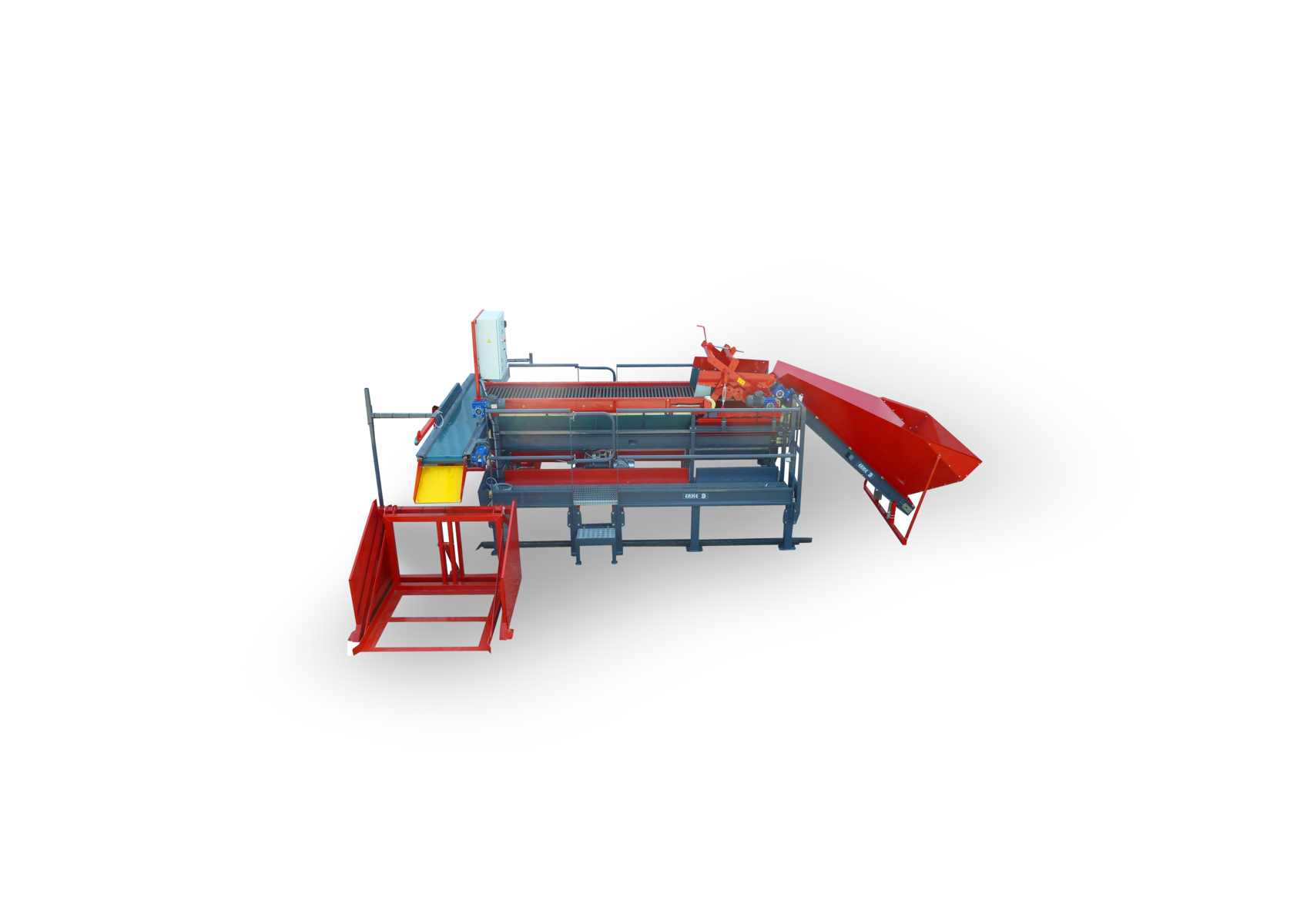

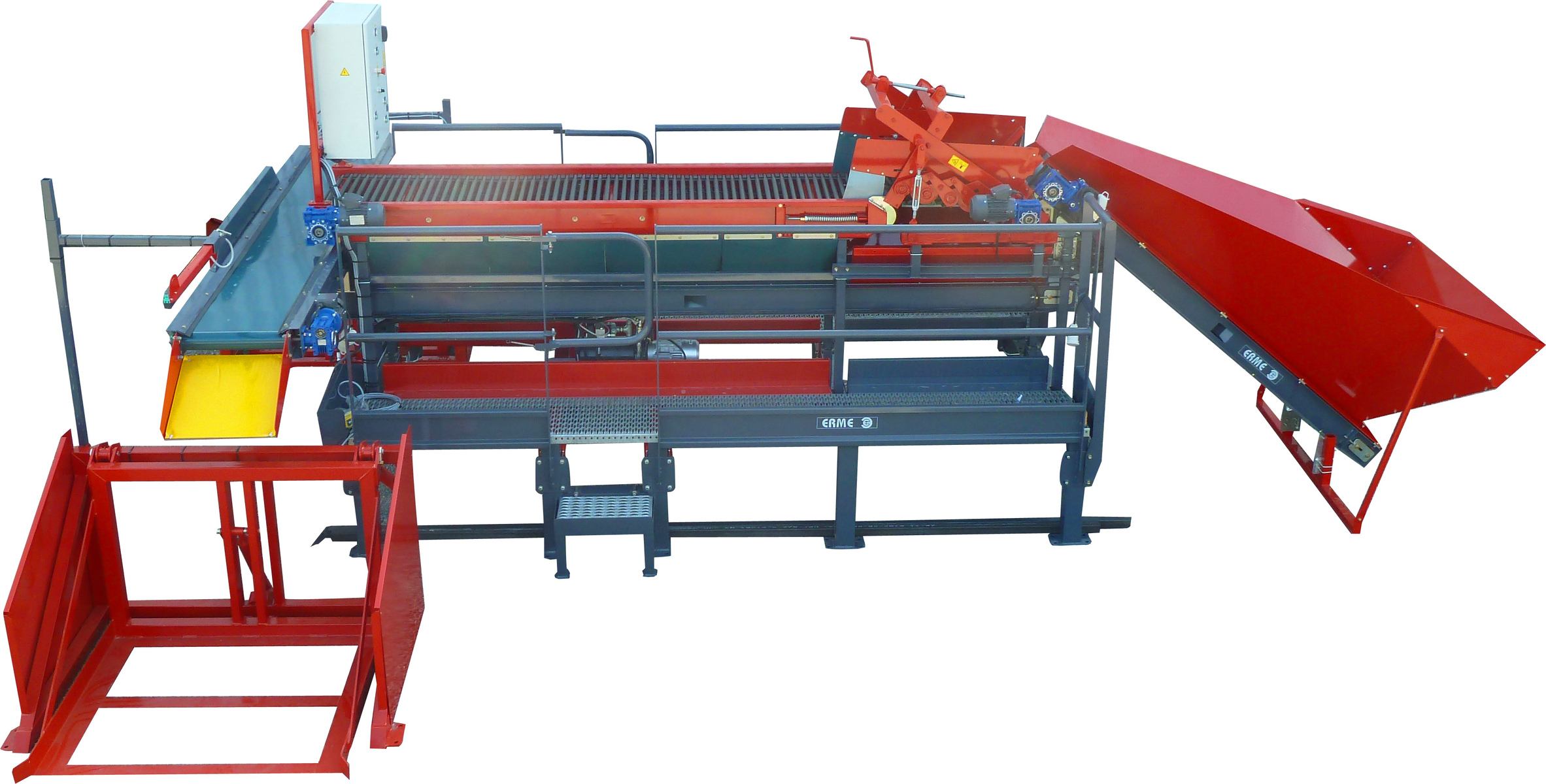

Yard soil cleaning line adapted to box or big bag harvesting.

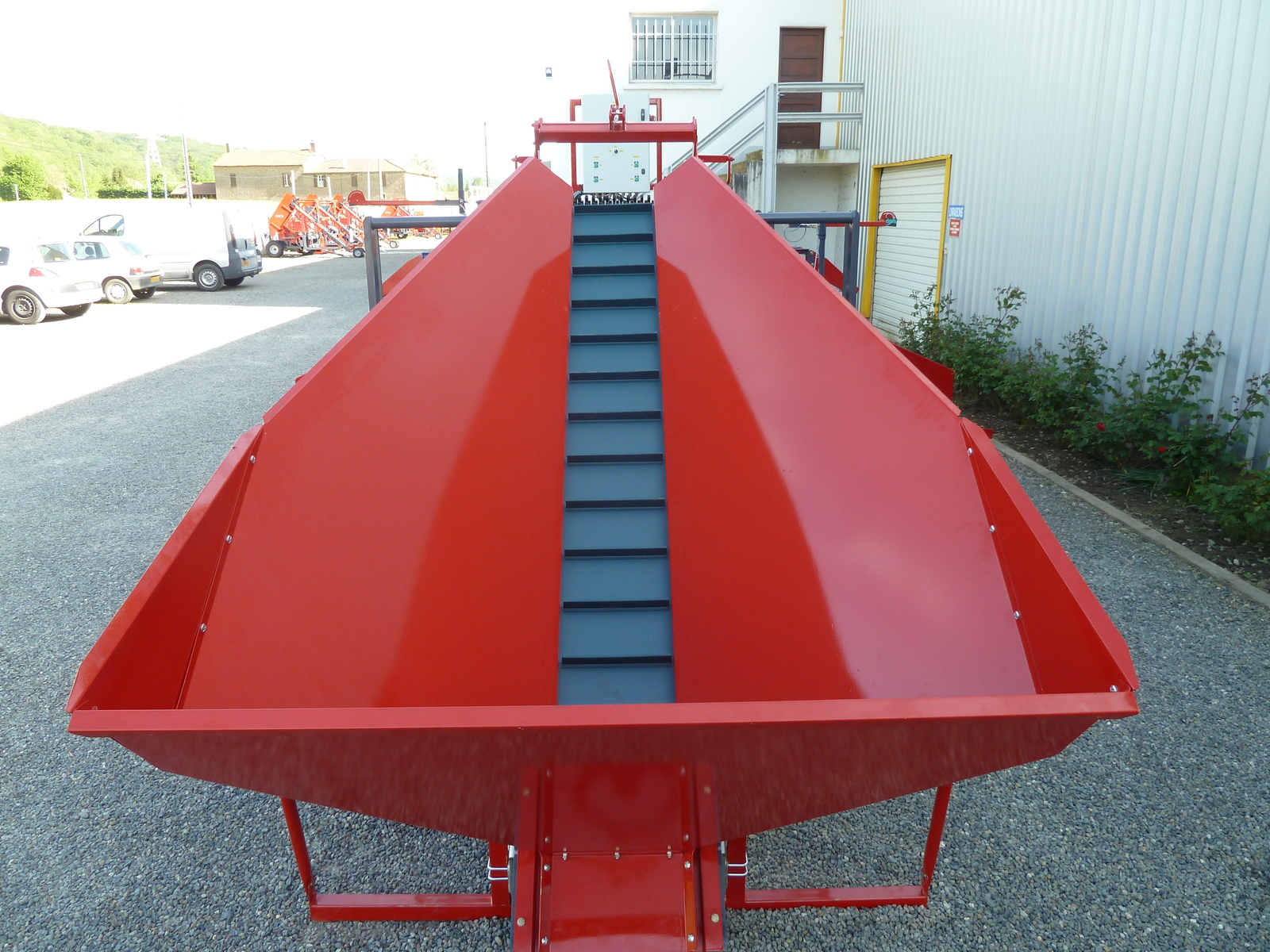

- To chose, either large hopper 1650L and feeding belt with speed variation or box tipper
 (box sizes to specify) + feeding belt.
- Soil cleaning table(s) with 6 rows of rubber fingers.
- Rubber coated air cushioned steel bar conveyor belt for a manual finishing (optionnal vibration of the belt).
- A side conveyor belt for box filling.
- A soil/waste evacuation belt.
- Two box filling units for optimal filling with no garlic fall. Automatic box lowering system (box sizes to specify).
- Power supply by an electric hydraulic pump, 380v three phase.
- Centralized electric control box.
- Output 2 to 10m3/h.
