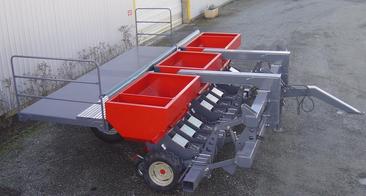

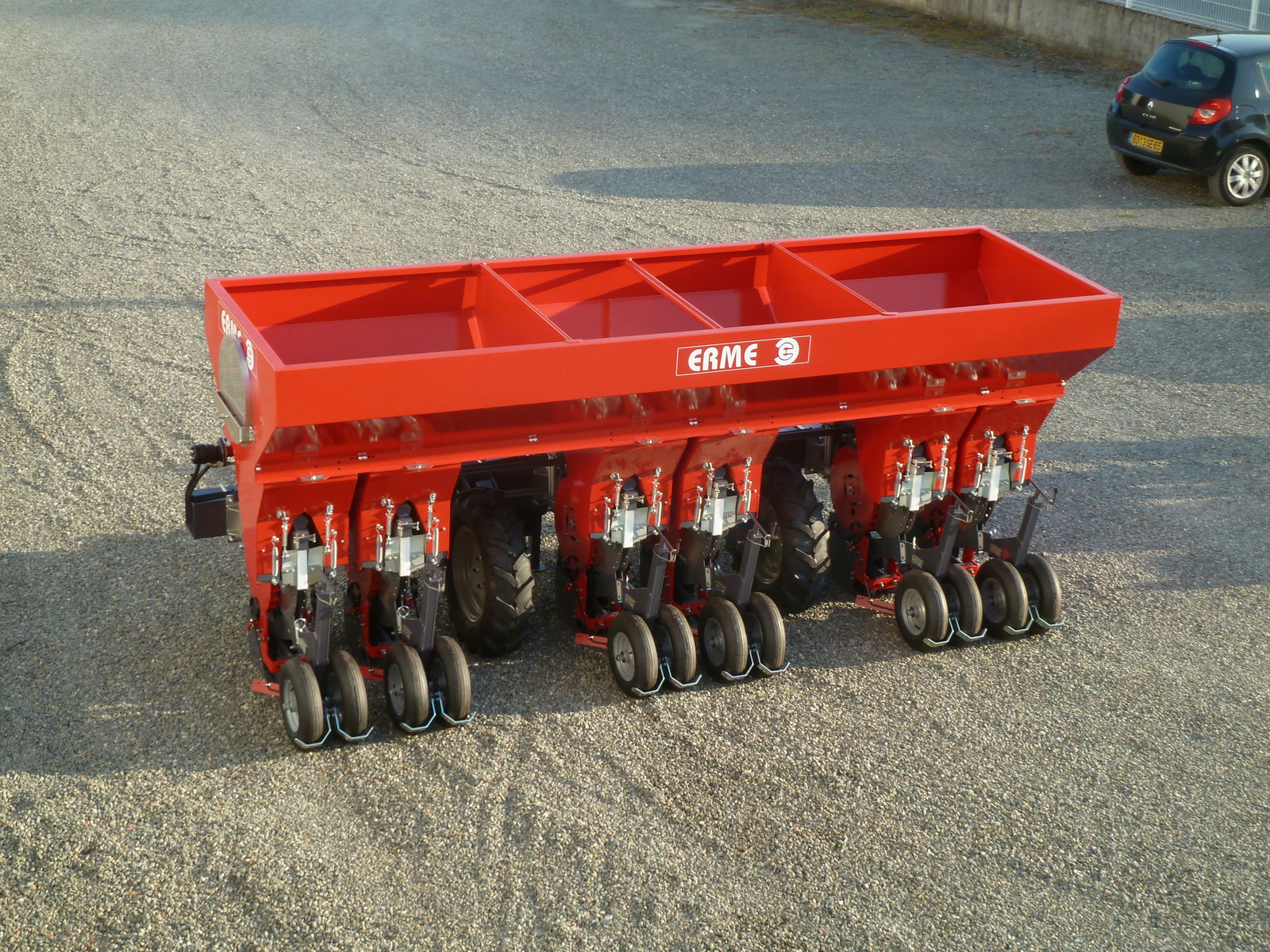

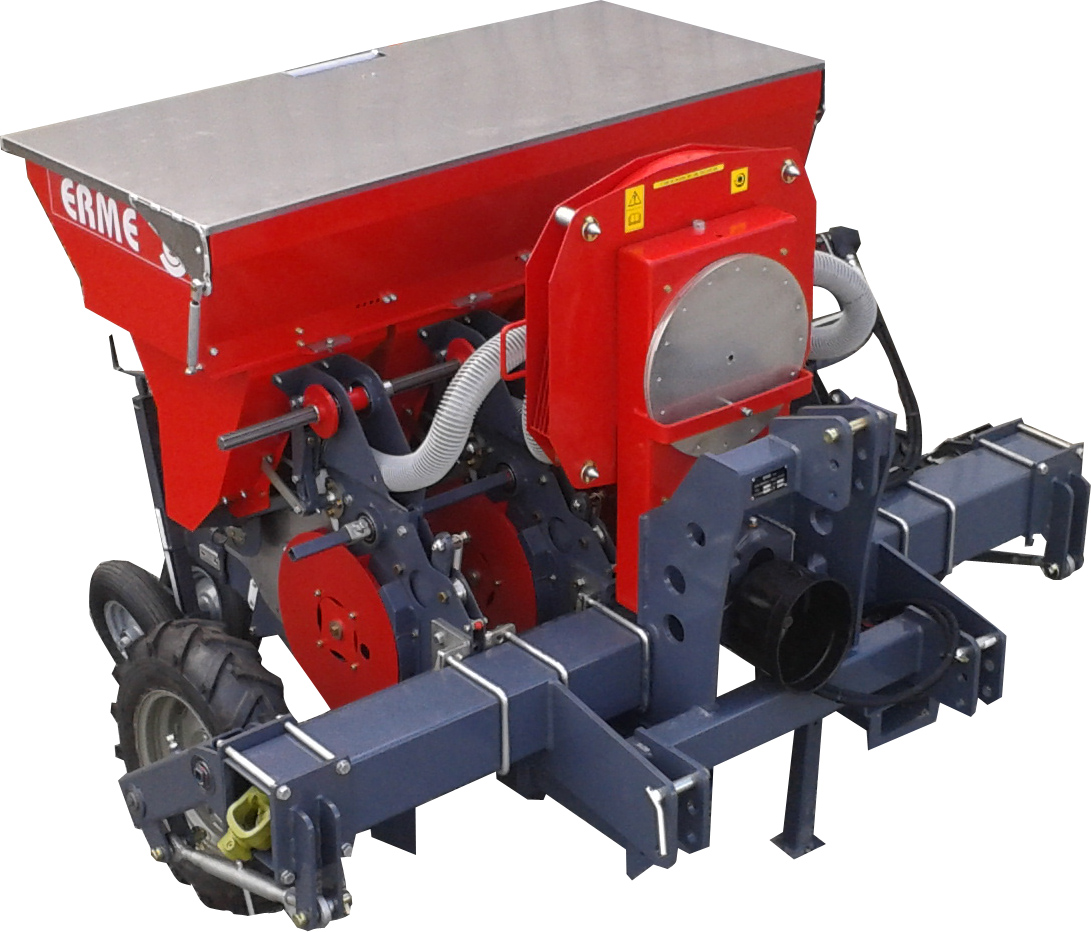

Double row pneumatical garlic & onion planter


Solutions adapted to your needs. Innovated systems to optimise precision and gain planting time. Easy & quick change of the discs according to the size of your cloves.

Modular according to your specific requirements, the pneumatic planter is a precise machine, fast & efficient.
Adapted to all soil conditions, it will give you complete satisfaction and guarantee regular planting and a optimal output.
Ideal in very dry countries, the double row enables to gain density and so quantity of harvested garlic without any changes to your harvest equipment.



Type : PLPD
Number of rows : 1 to 8 double rows.Minimum distance between rows : 35cm (standard for garlic 45cm).
Wheel track adjustable according to the tractor.
Drive wheels adjustable in height, machine adapted for planting on beds.
Planting system (disc 24 holes + distribution wheel). Discs 8- 10- 12- 14- 17mm (3 sizes included)

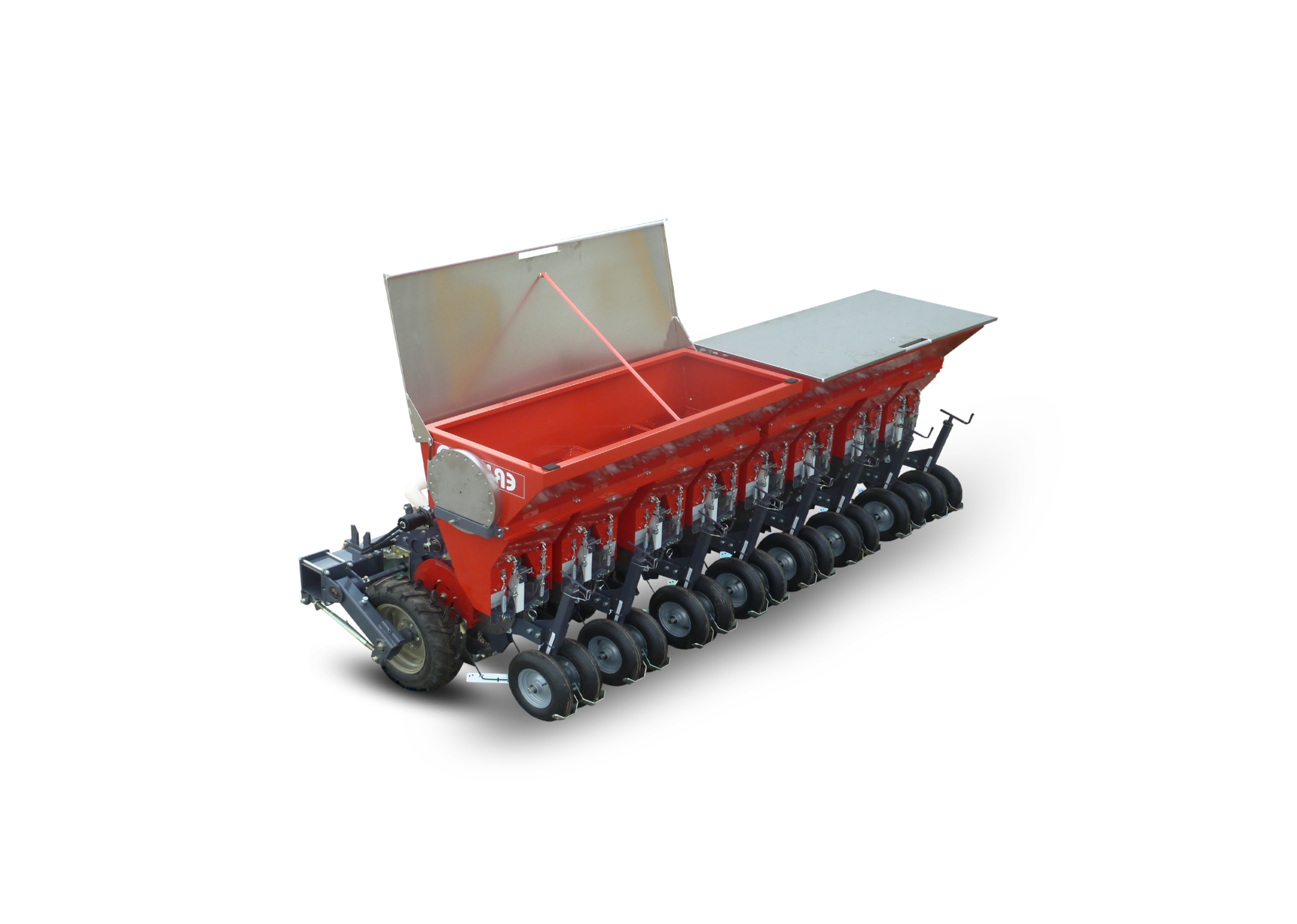

One single hopper for all the rows: 100L/row (individual hoppers or big volume single hopper are optionnal).
Aluminium cover over the hopper.

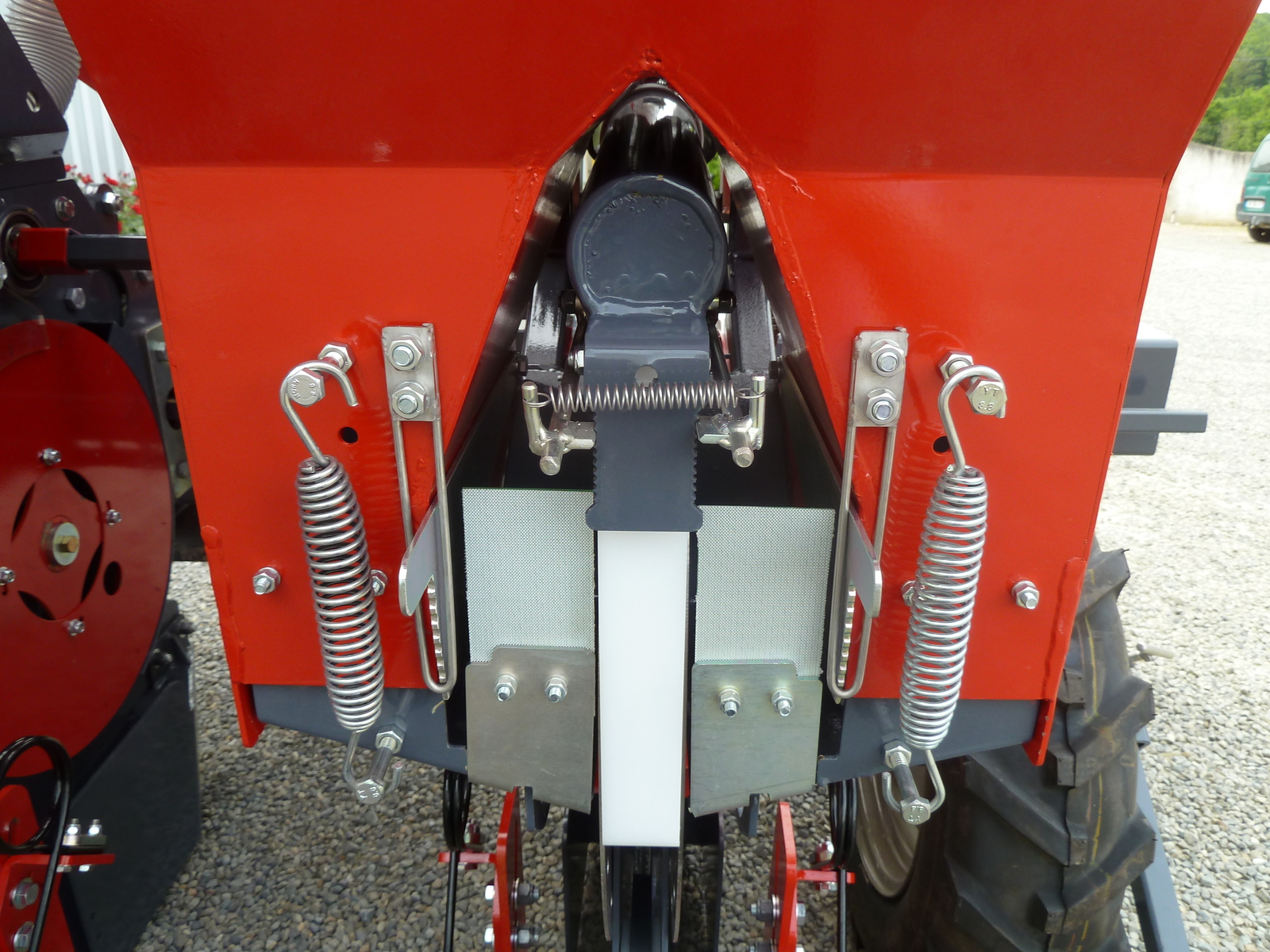

A vibrator per row to ease the flow down the unit and suction on the disc.
Each shoe is independant and mounted between 4 rollers.

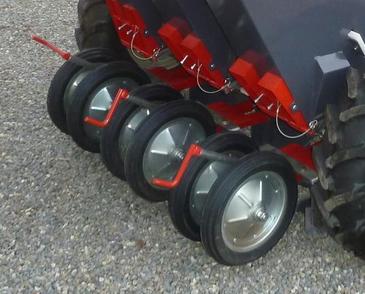

Planting depth adjustable with the rear blow up wheels (hard rubber wheels are optionnal).
Planting density adjustable with one central gear box
(standard 14 to 32 cloves/meter).
PTO driven: 400 to 540 rpm.
Nominal speed :2,5Km/h up to 3,5Km/h according to the density.


  3 rows 4 rows 5 rows 6 rows
LENGTH 2.00m 2.00m 2.00m 2.00m
WIDTH 2.20m 2.55m 3.15m 3.50m
HEIGHT 1.70m 1.70m 1.70m 1.70m
WEIGHT 1000kg 1300kg 1600kg 1900kg

Options for this product

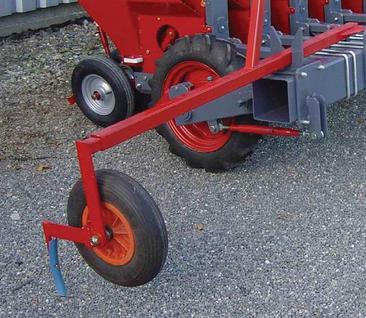

Wheel markers

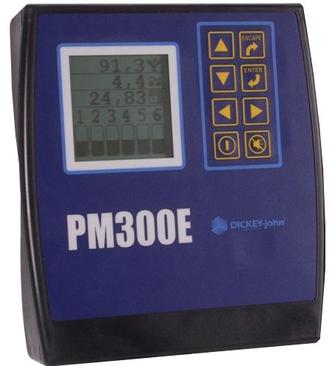

Digital planter controller

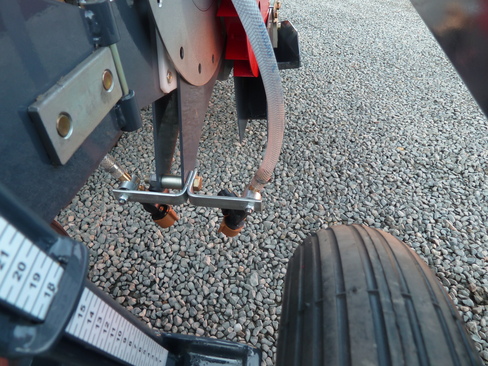

Liquide spraying

Hard rubber wheels

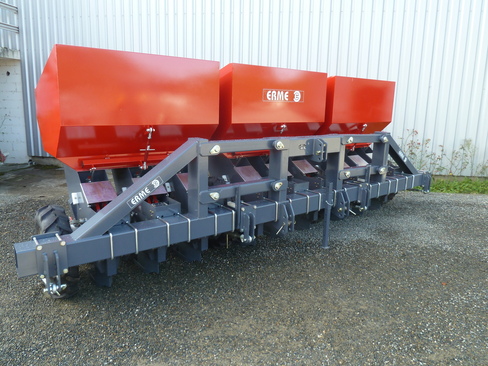

Wide parallelogram chassis

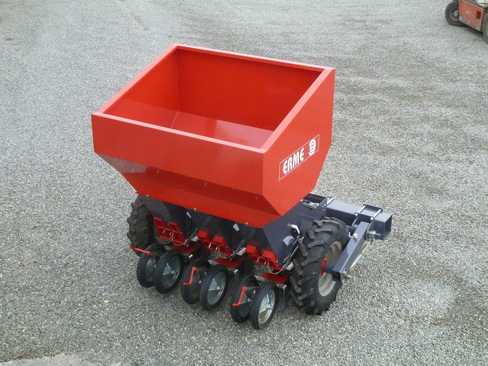

Big volume hopper

Towed machine

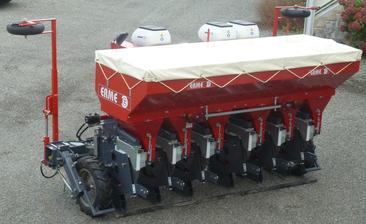

Hopper PVC tarpall
