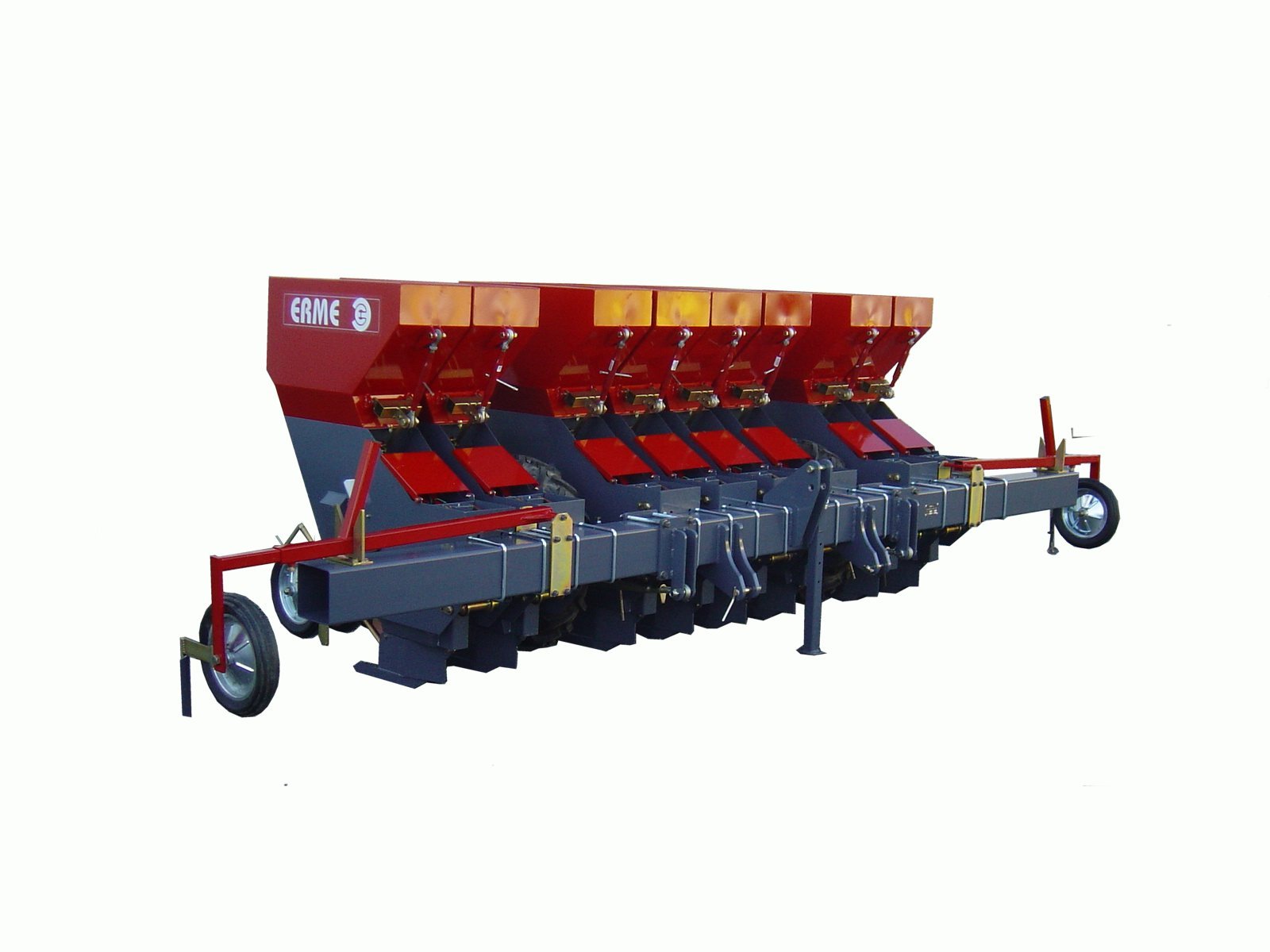

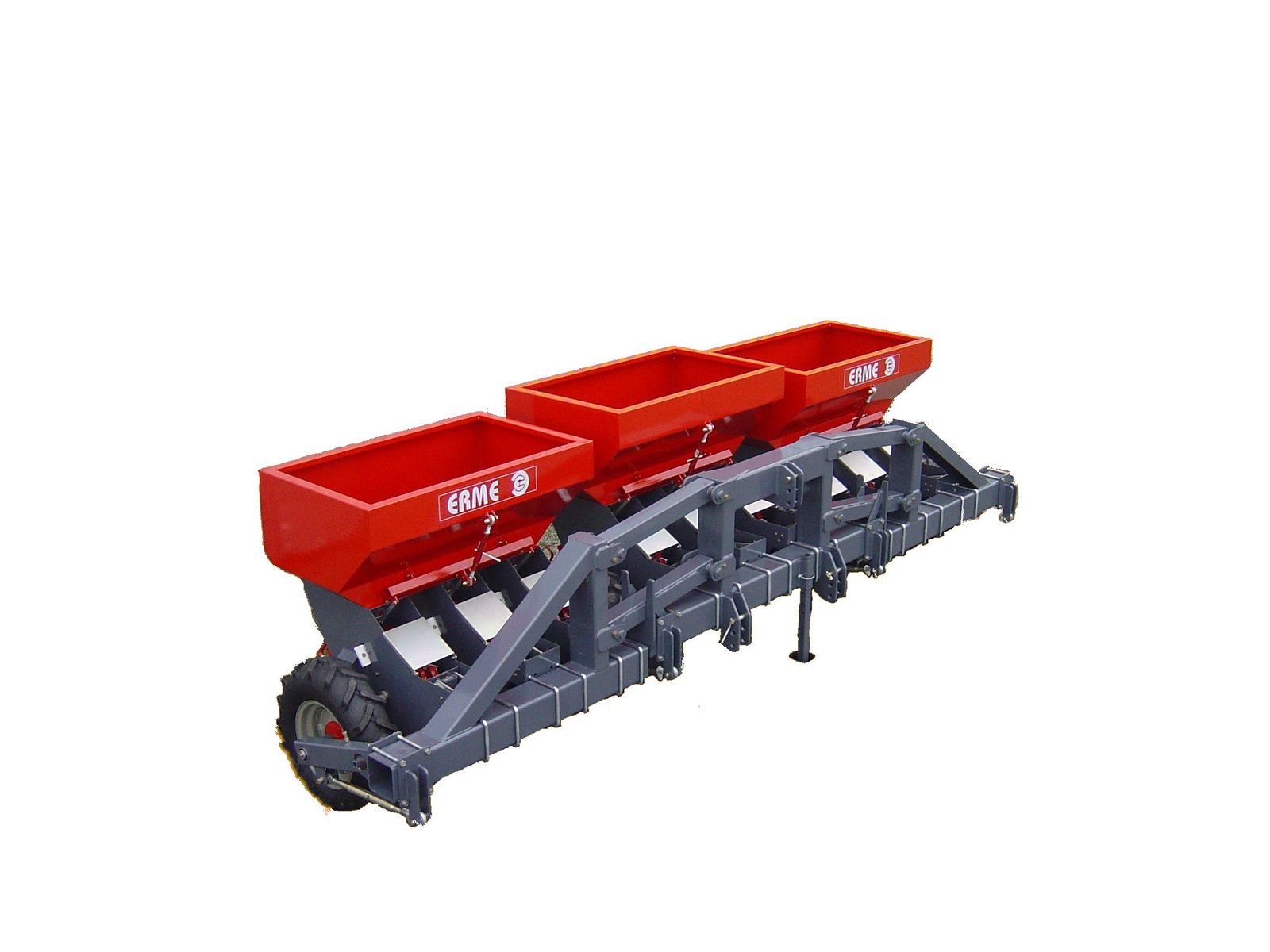

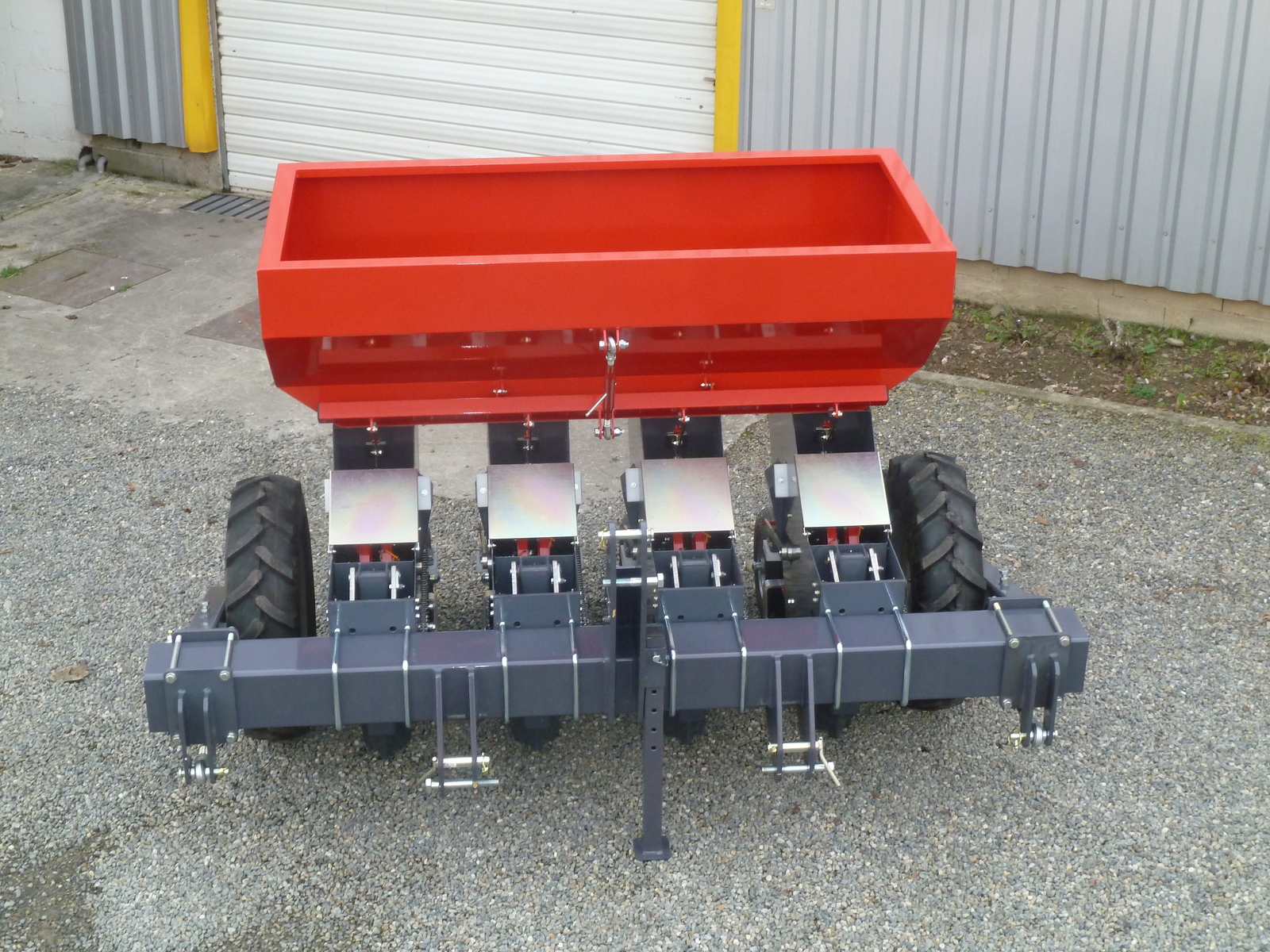

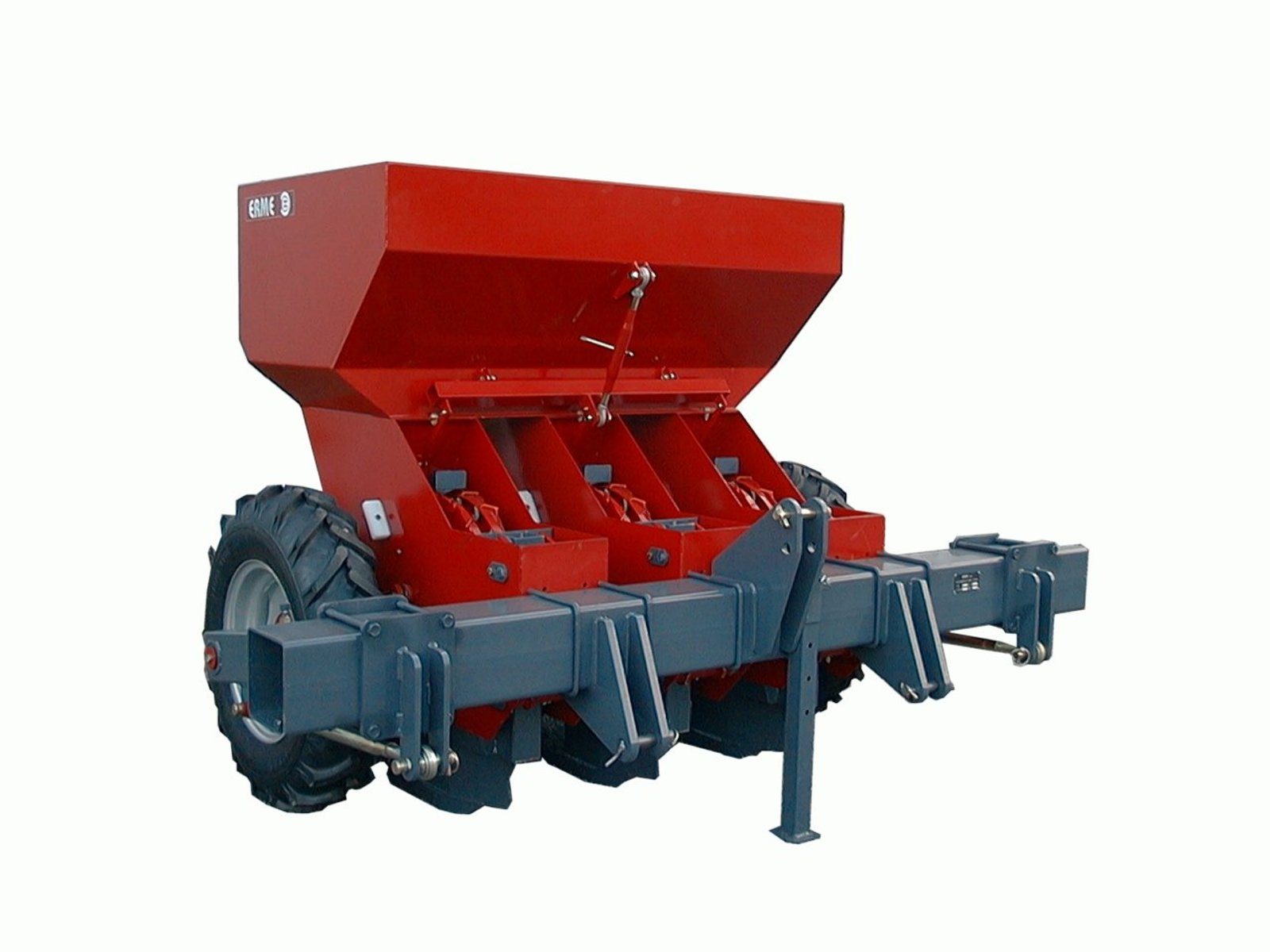

Double row mechancial garlic & onion planter


Solutions adapted to your needs. Easy & quick change of the spoons according to the size of your cloves.

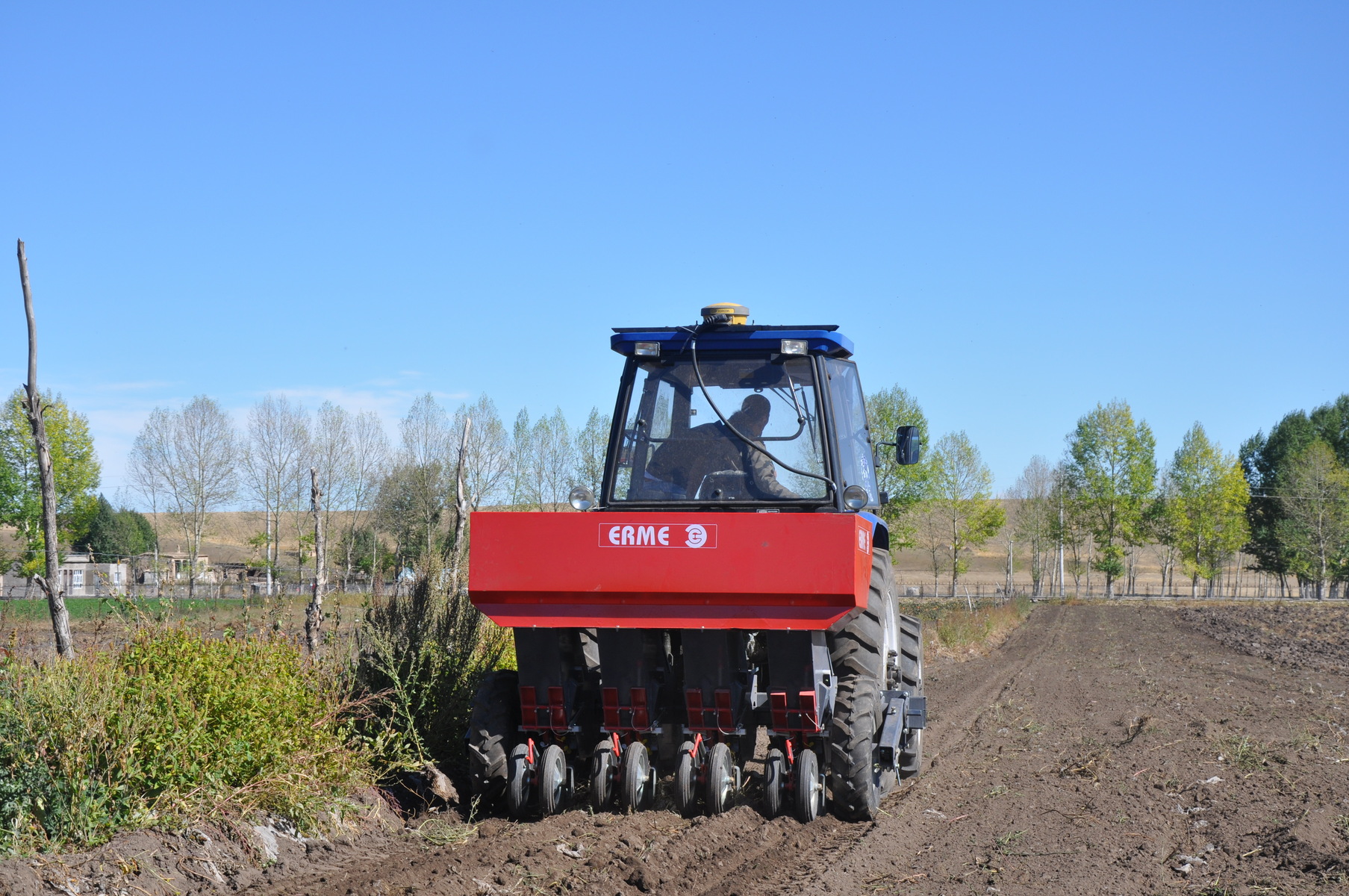

The mechanical planter is very reliable, easy to use and very less service. Light weight, it is ideal for small areas and light weight tractors. Ideal in very dry countries, the double row enables to gain density and so quantity of harvested garlic without any changes to your harvest equipment.

>  Watch the video

Les points forts

Easy to use


Type : PLMD
Number of rows : 1 to 15 double rows.
Minimum distance between rows : 35cm (standard in garlic 45cm).
Wheel track adjustable according to the tractor.
Drive wheels adjustable in height, machine adapted for planting on beds.

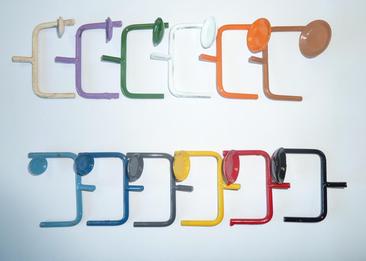

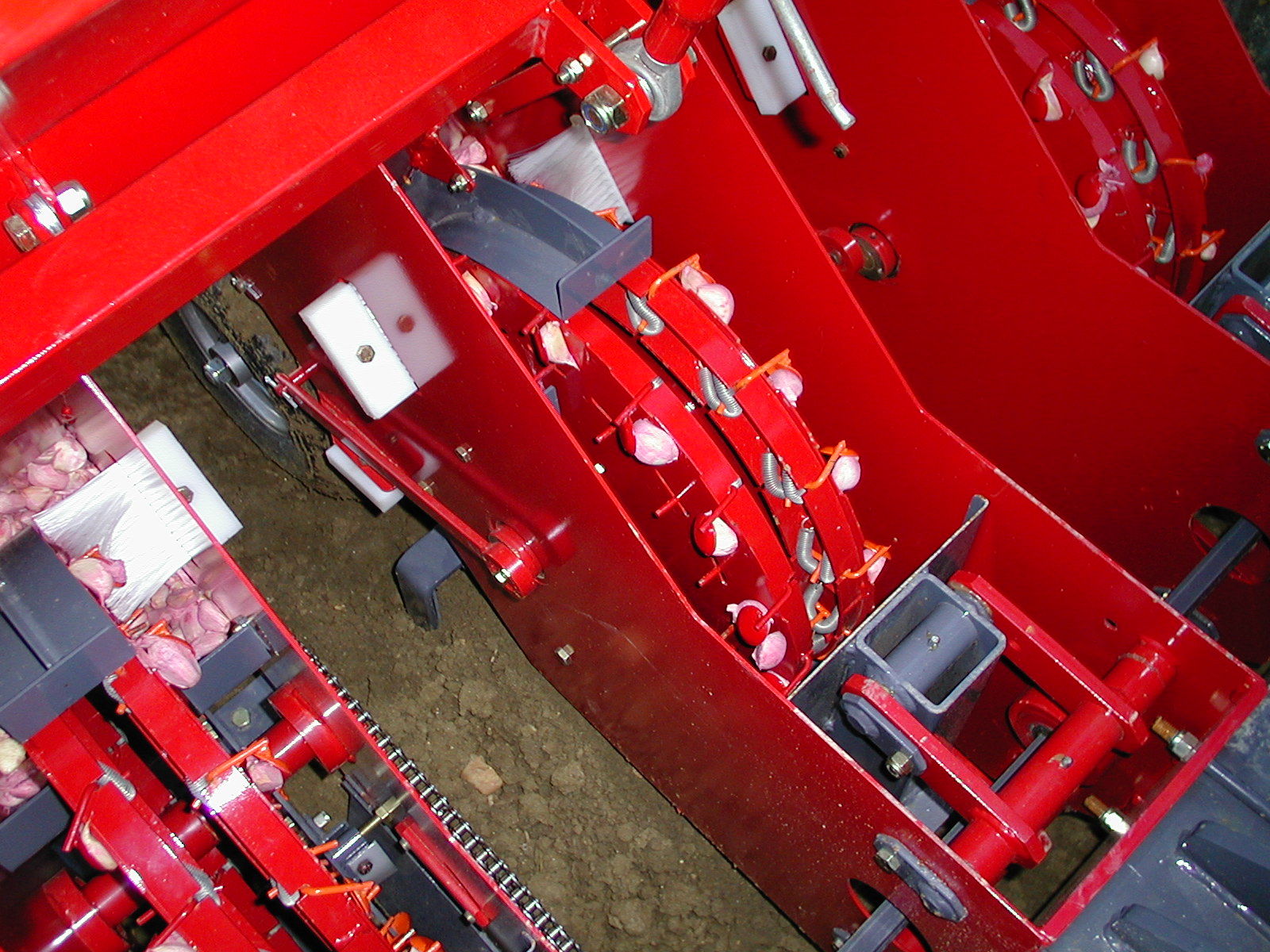

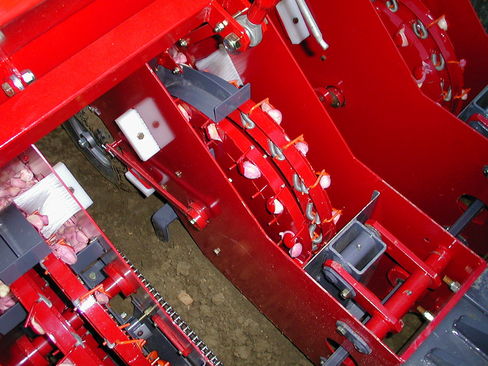

Planting wheel with 32 spoons. One set supplied with the standard machine, 6 sizes to chose from (cf options).

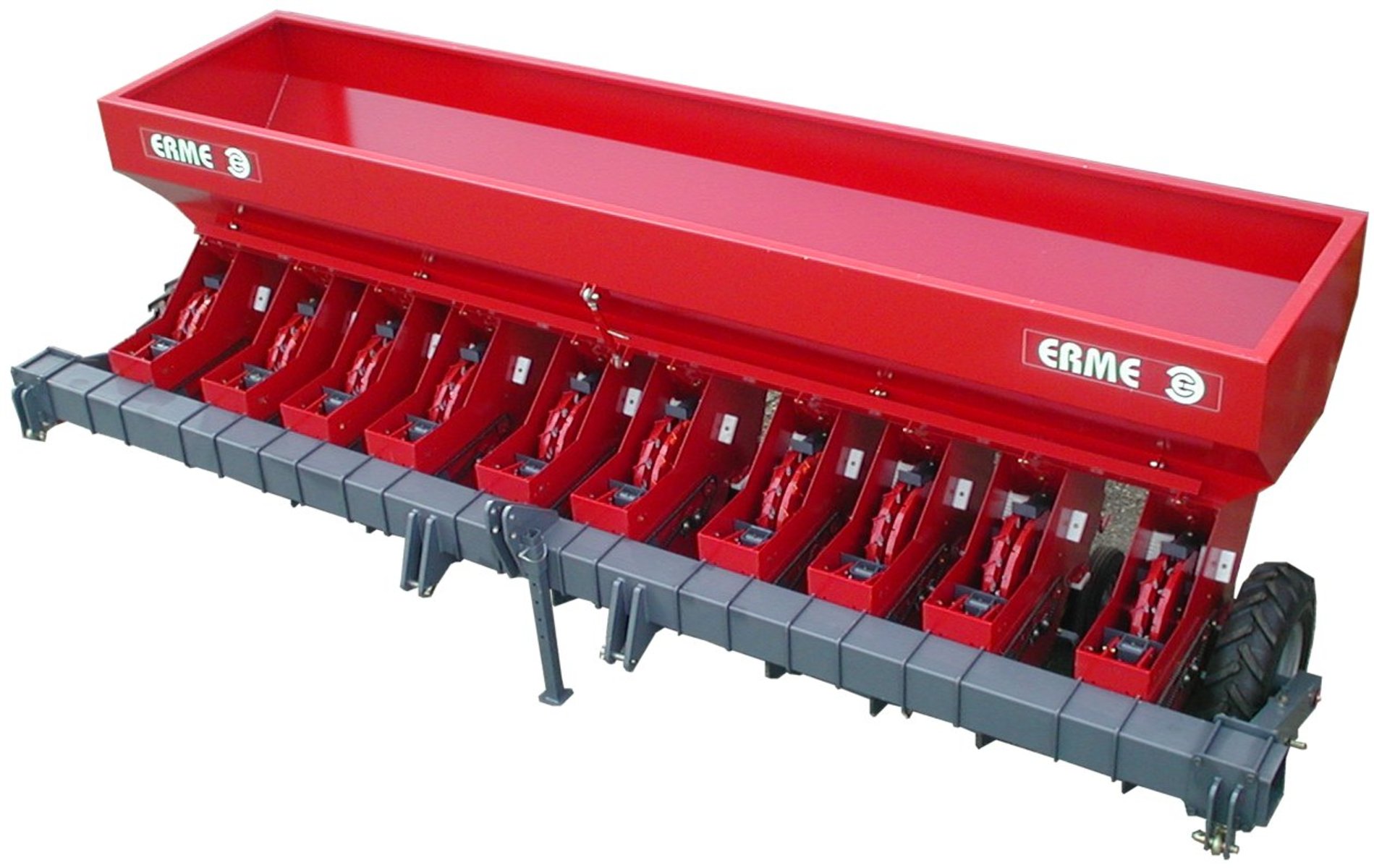

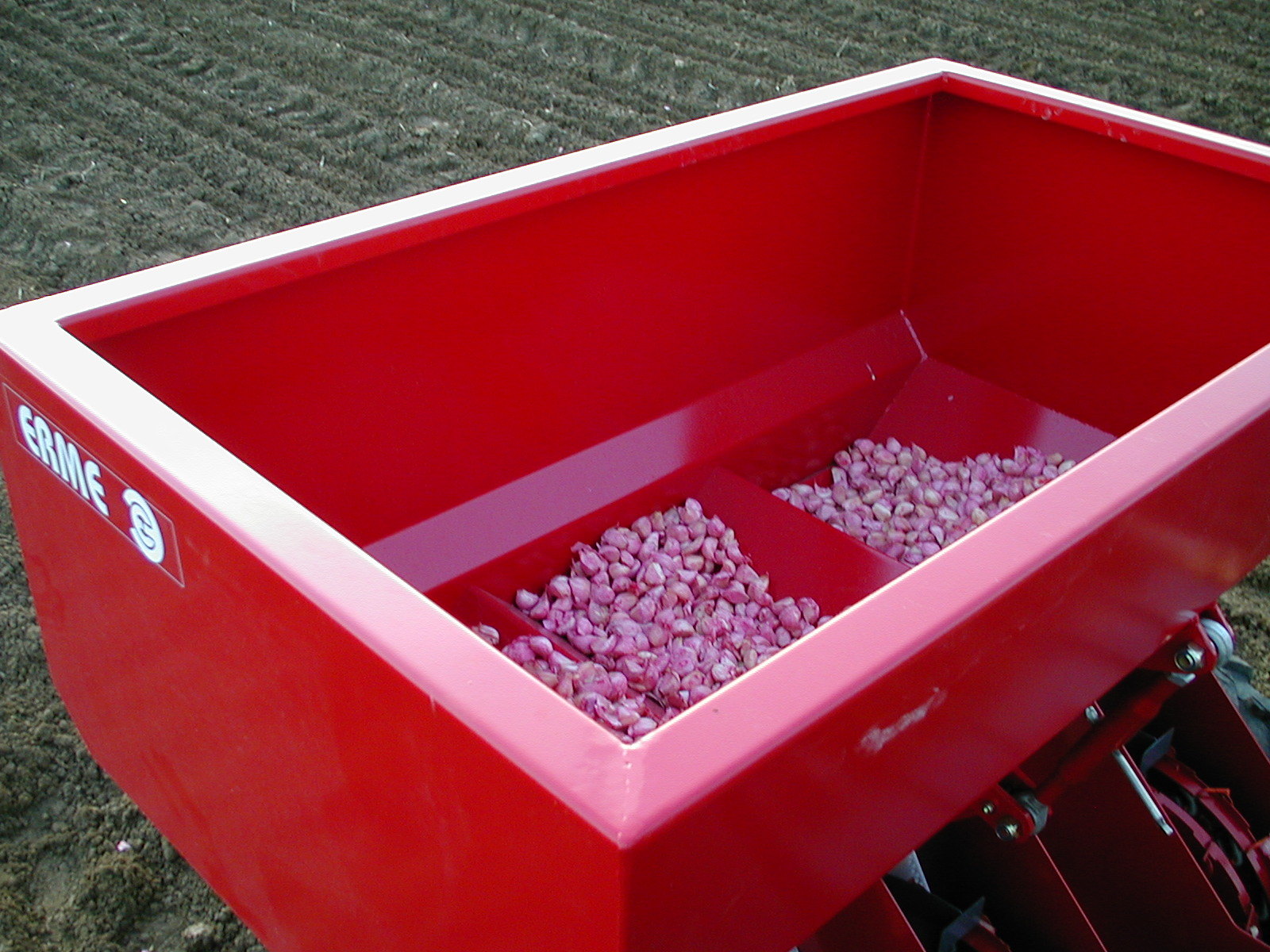

One single hopper for all the rows : approx  100L/row (optional big volume hopper).A vibrator per row to ease the flow of the cloves.
Each row is independant and mounted on a parallelogram system.
Planting depth adjusted by the rear depth wheels.

Planting density adjusted by a set of sprockets (standard 7 to 13 cloves/m).
Nominal speed : 2.2Km/h.


  3 rows 4 rows 5 rows 6 rows 8 rows 12 rows
LENGTH 1.65m 1.65m 1.65m 1.65m 1.65m 1.65m
WIDTH 2.20m 2.55m 3.15m 3.80m 5.10m 6.90m
HEIGHT 1.60m 1.60m 1.60m 1.60m 1.60m 1.60m
WEIGHT 730kg 880kg 1030kg 1200kg 1600kg 2700kg


Options for this product

Big volume hopper

Wide parallelogram chassis

Planting spoons

Wheel markers

Digital planter controller

Liquide spraying

Hard rubber wheels


Towed machine

Planting spoons
