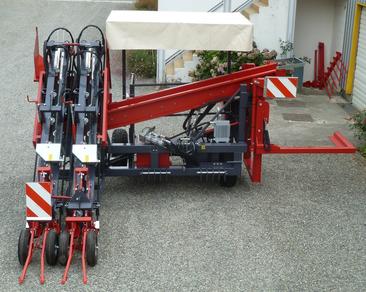

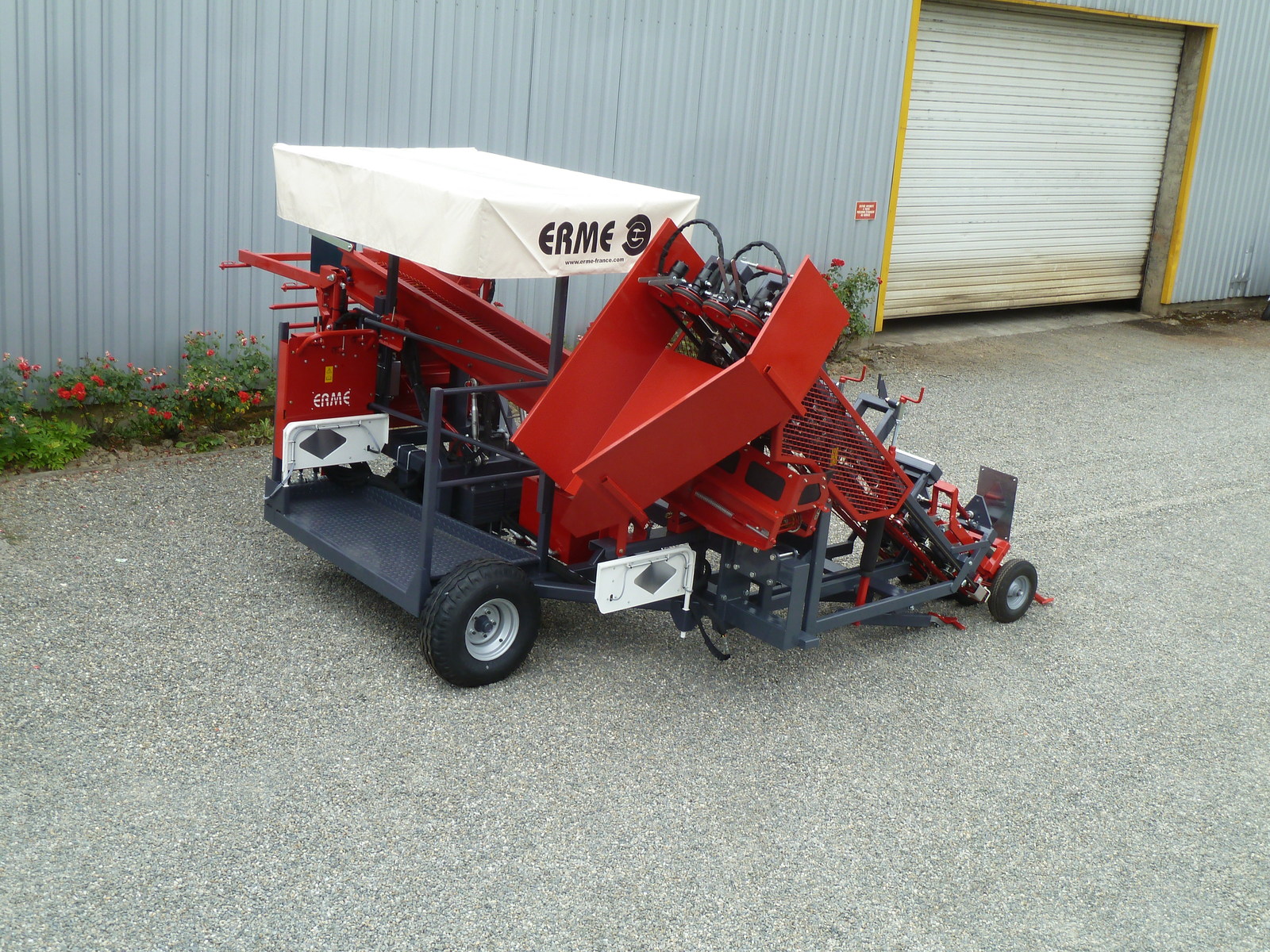

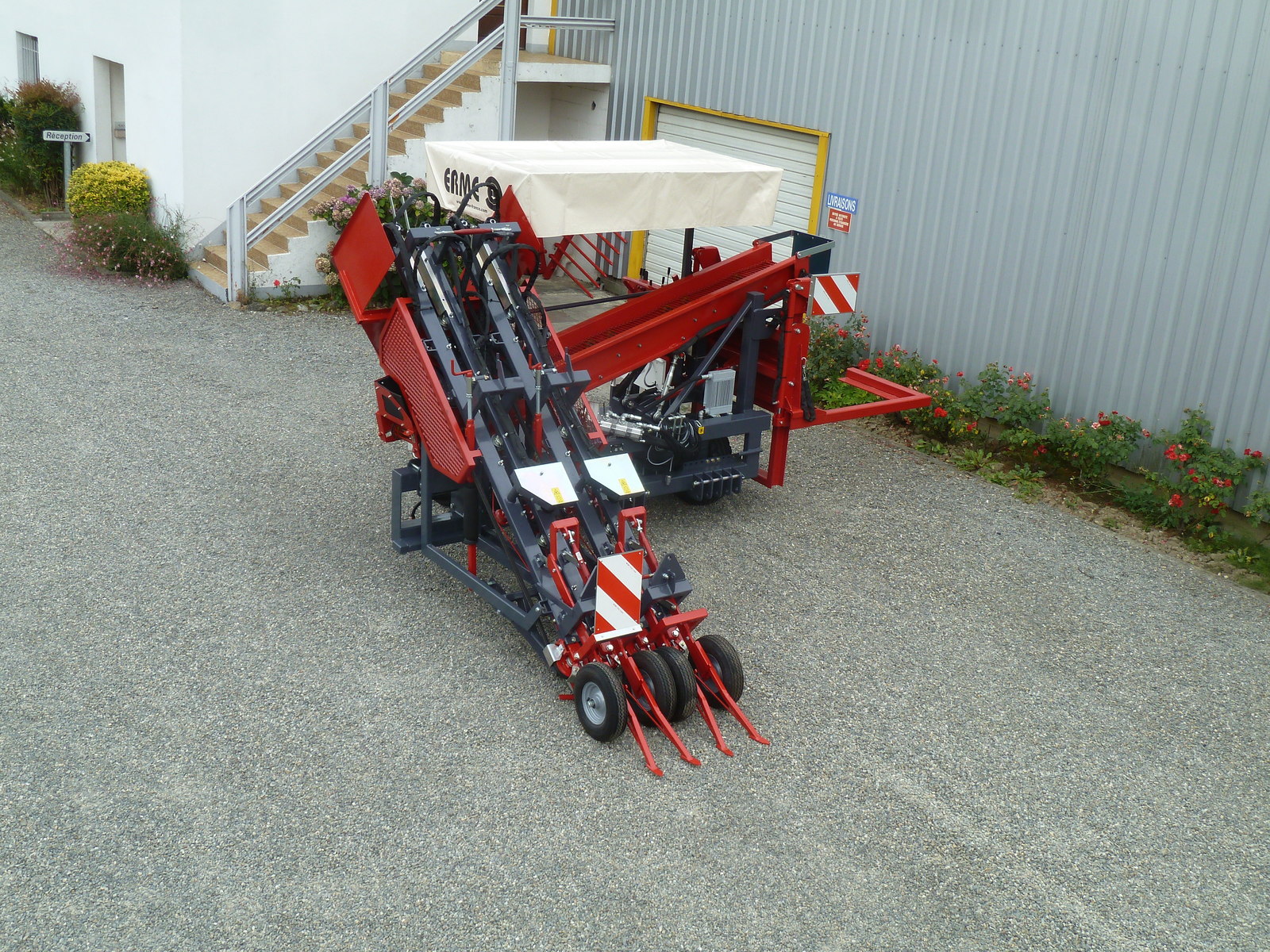

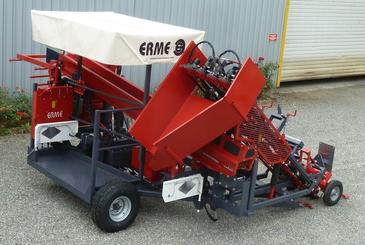

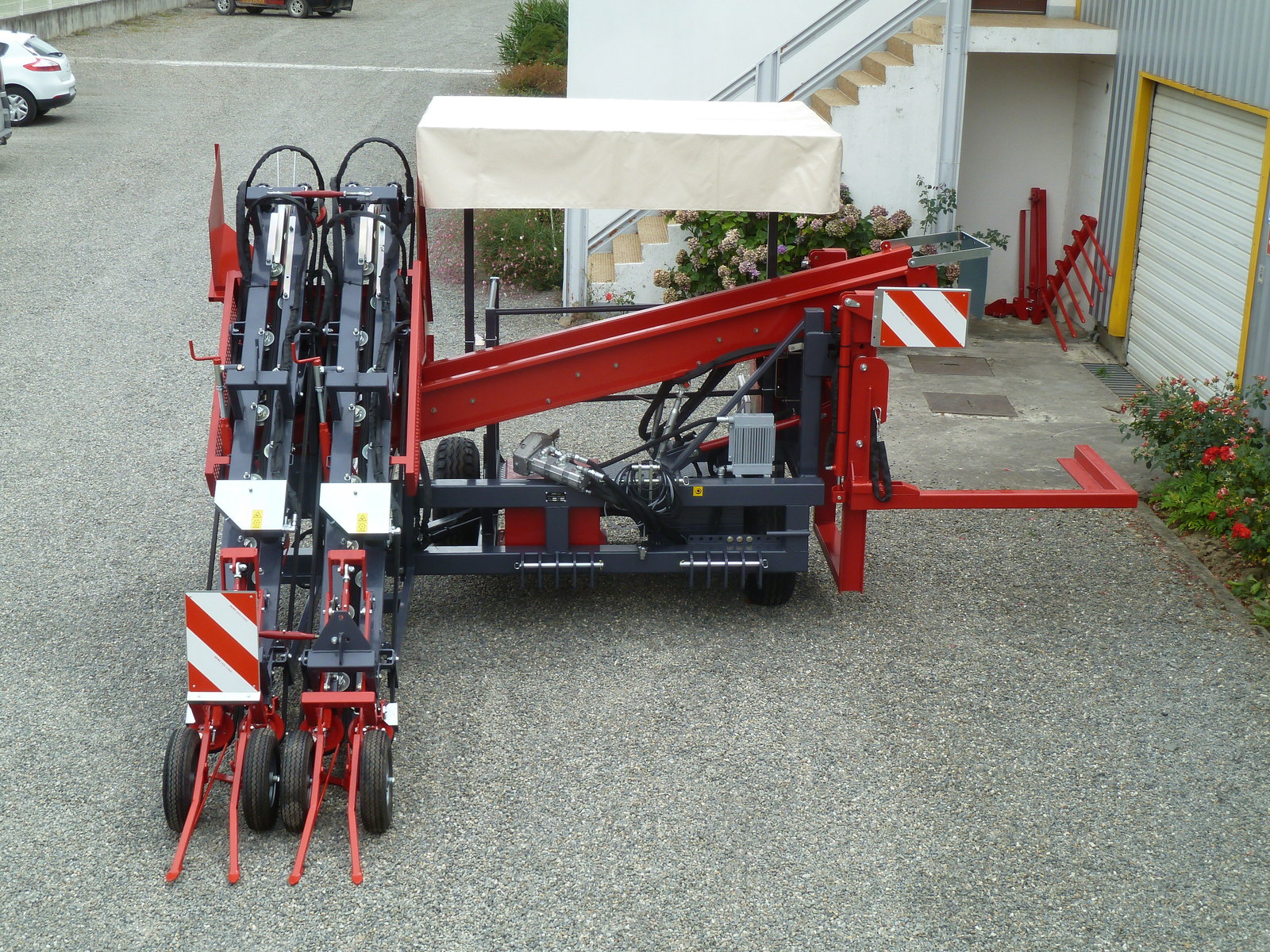

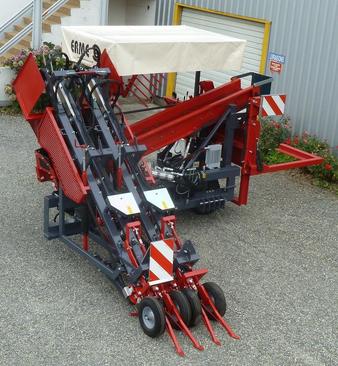

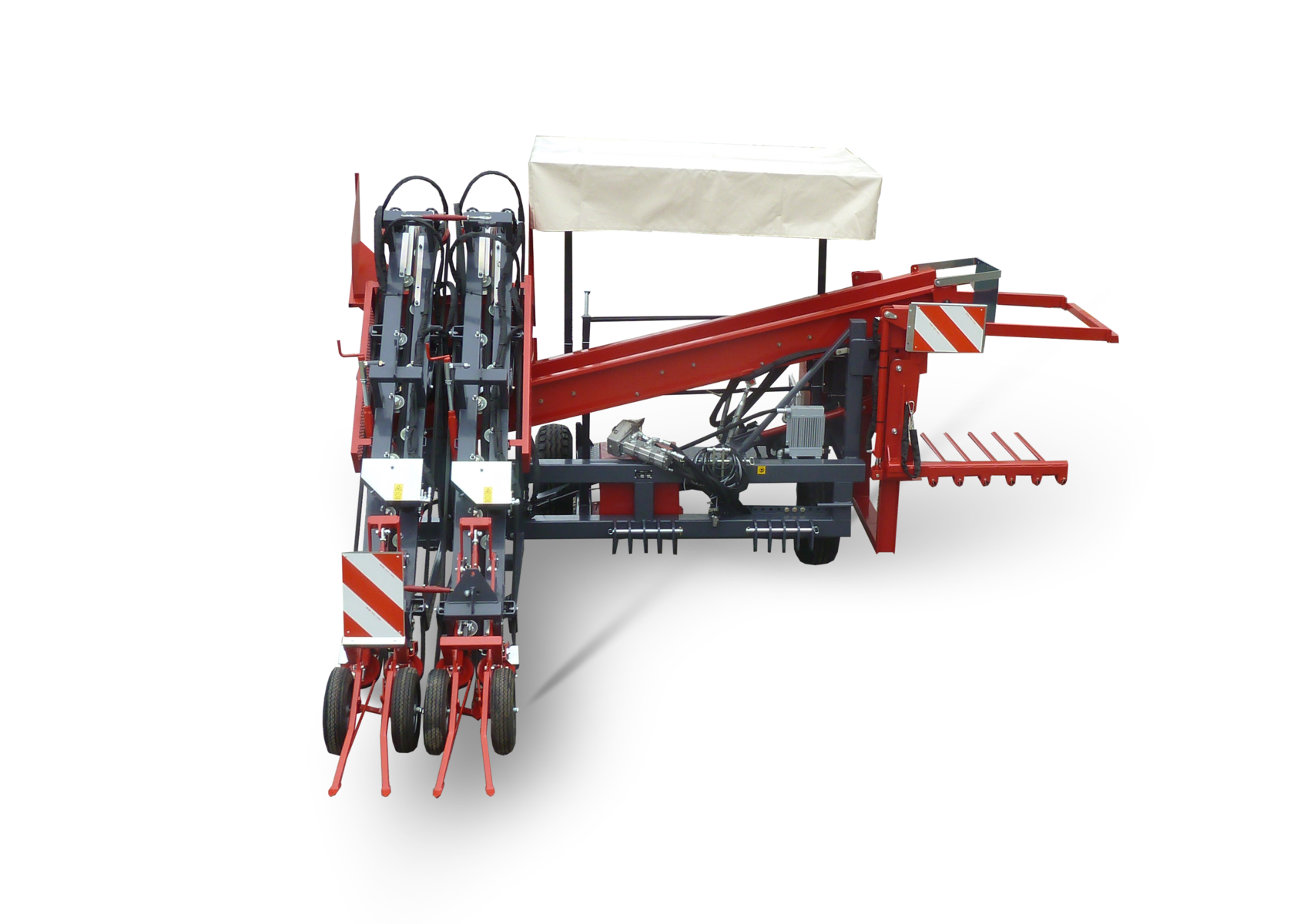

Two row harvester - carried machine

Ref. RE2

Solutions adapted to your needs, Efficient & precise guaranteeing the quality of the garlic. With leaf topping, you ensure saving time after harvest.

The two row harvester topper is ideal for medium size farms and mainly pair planting schemes (2,4,6,...).
Also ideal for equaly spaced planting schemes all over the field.

Caractéristiques

Type: RE1

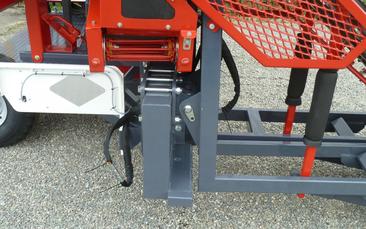

Carried machine, multi position three point linkage to the tractor.
Harvest system on the side of the tractor, minimal distance between rows 45cm.
Machine wheel track adjustable according to the tractor.
Each harvest system is composed of:
- Two front leaf lifters
- A shoe for lifting the garlic heads, manual adjustment of the depth (hydraulic is optionnal)
- Two harvesting belts, manual height adjustment.
- A progressif vibration system to eliminate the excess of soil. A knob enables to adjust the speed.
- Two belts to level out the garlic cutting height.
- Precise cutting due to the double disc system.
- Safety pressure valve system in case of blockage of the belts.
- A system to evacuate the leaves.

A lateral conveyor belt with steel bars to take the garlic to a big bag (0.90mx0.90mxh1.20m), or a palox (1.20mx1.20mxh1.00m).
A sytem to lift the bottom of the bag and to tilt the box in order to preserve the quality of the garlic.
Drive system thanks to three hydraulic pumps with a multiplicator mounted directly on the tractor PTO shaft (540rpm).
Hydraulic oil tank with cooling system.
Rear lights and oversize plates.

Caracteristics

Nominal speed :                      4km/h to 6km/h
Tractor power :                        90hp
Harvest output :                      2ha in 8 heures
Length :                                  4.40m
Width :                                   3.70m
Height :                                  2.60m
Maximal load :                        750kg
Empty weight :                       2000kg
