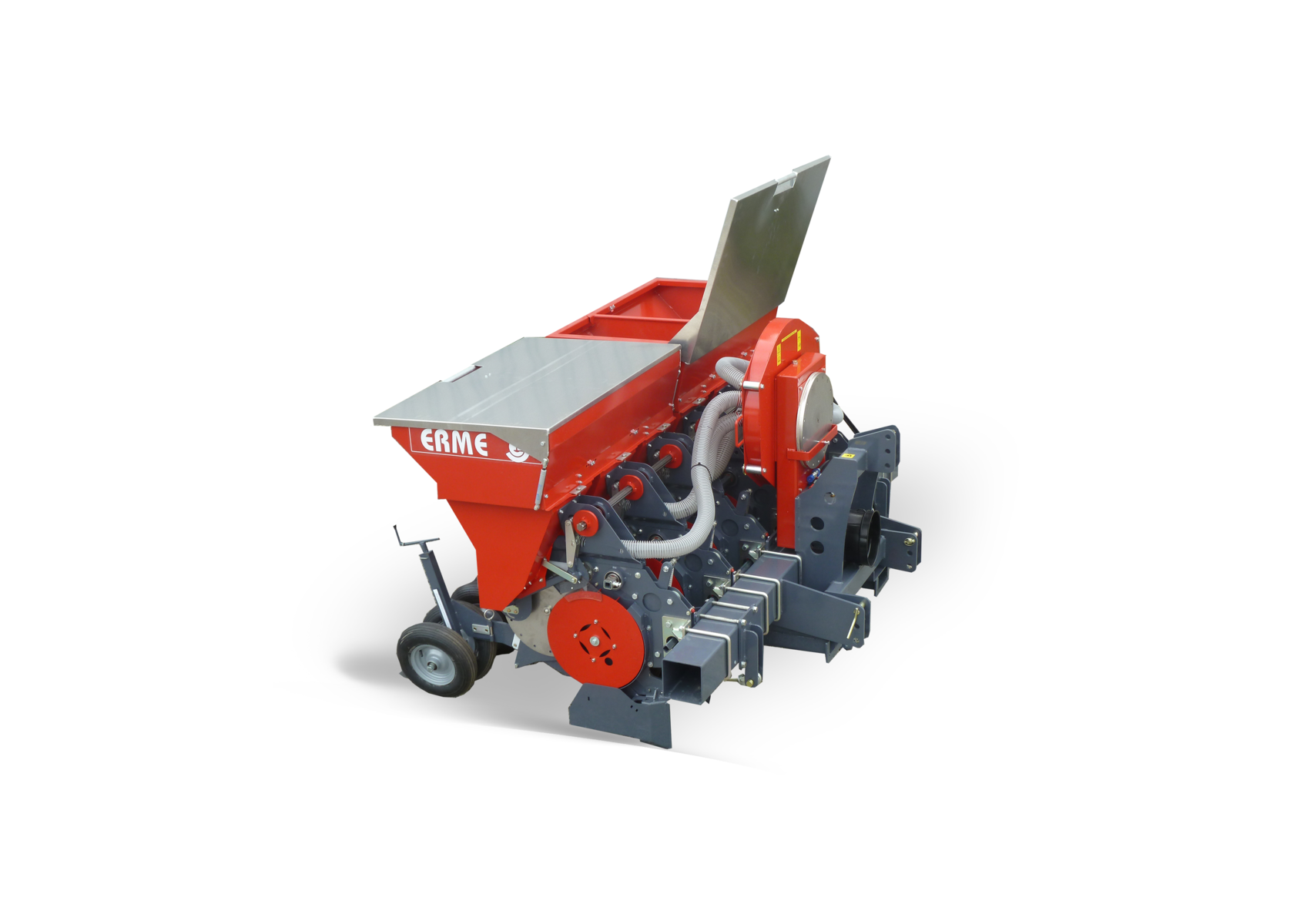

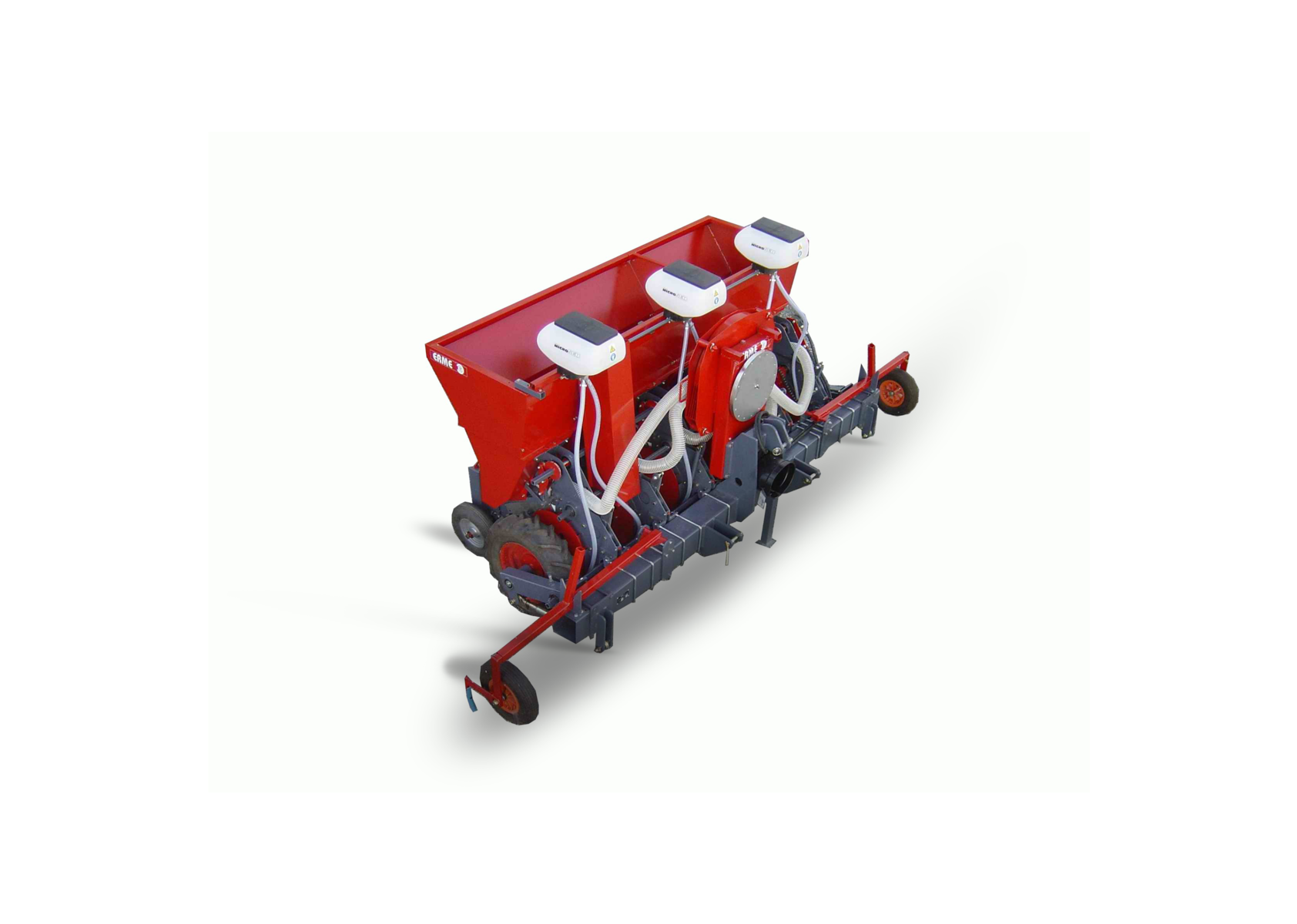

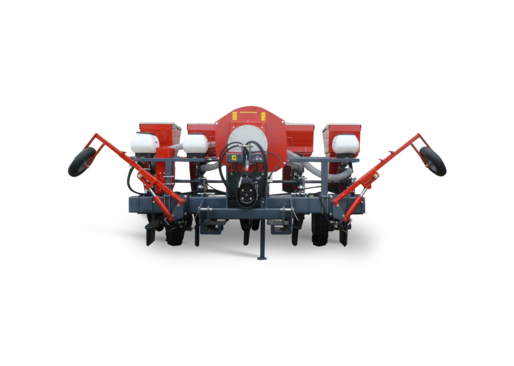

Single row pneumatical garlic & onion planter

Ref. PLPS

Solutions adapted to your needs. Innovated systems to optimise precision and gain planting time. Easy & quick change of the discs according to the size of your cloves.

Modular according to your specific requirements, the pneumatic planter is a precise machine, fast & efficient.
Adapted to all soil conditions, it will give you complete satisfaction and guarantee regular planting and a optimal output.

>  Watch the video

Les points forts

Easy use
Fast
Precise

Caractéristiques



Type : PLPS
Number of rows : 1 to 12 single rows.
Minimum distance between rows : 35cm (standard for garlic 45cm).
Wheel track adjustable according to the tractor.
Drive wheels adjustable in height, machine adapted for planting on beds.
Planting system (disc 24 holes + distribution wheel). Discs 8- 10- 12- 14- 17mm (3 sizes included)
One single hopper for all the rows: 100L/row (individual hoppers or big volume single hopper are optionnal).
Aluminium cover over the hopper.
A vibrator per row to ease the flow down the unit and suction on the disc.
Each shoe is independant and mounted between 4 rollers.

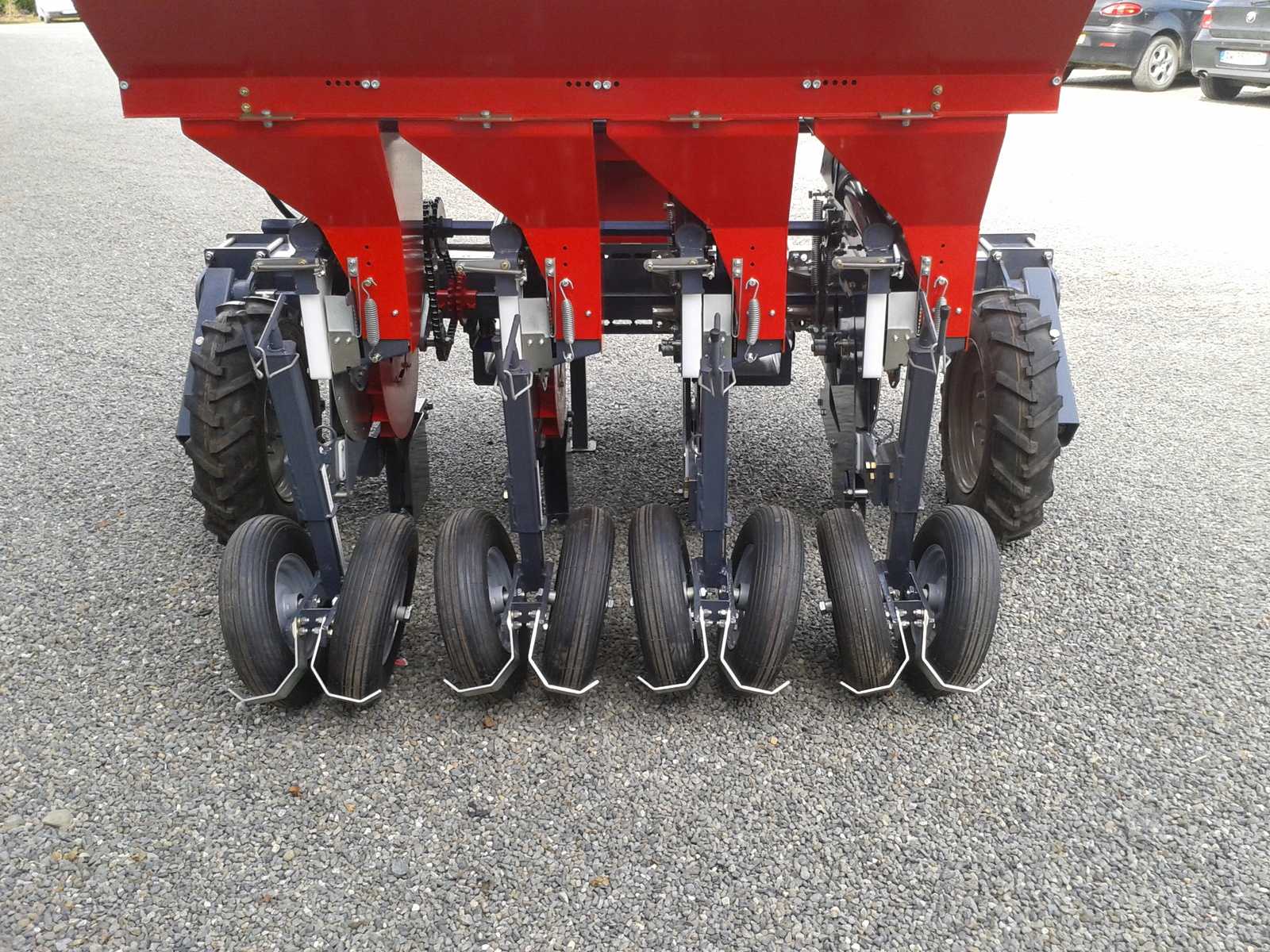

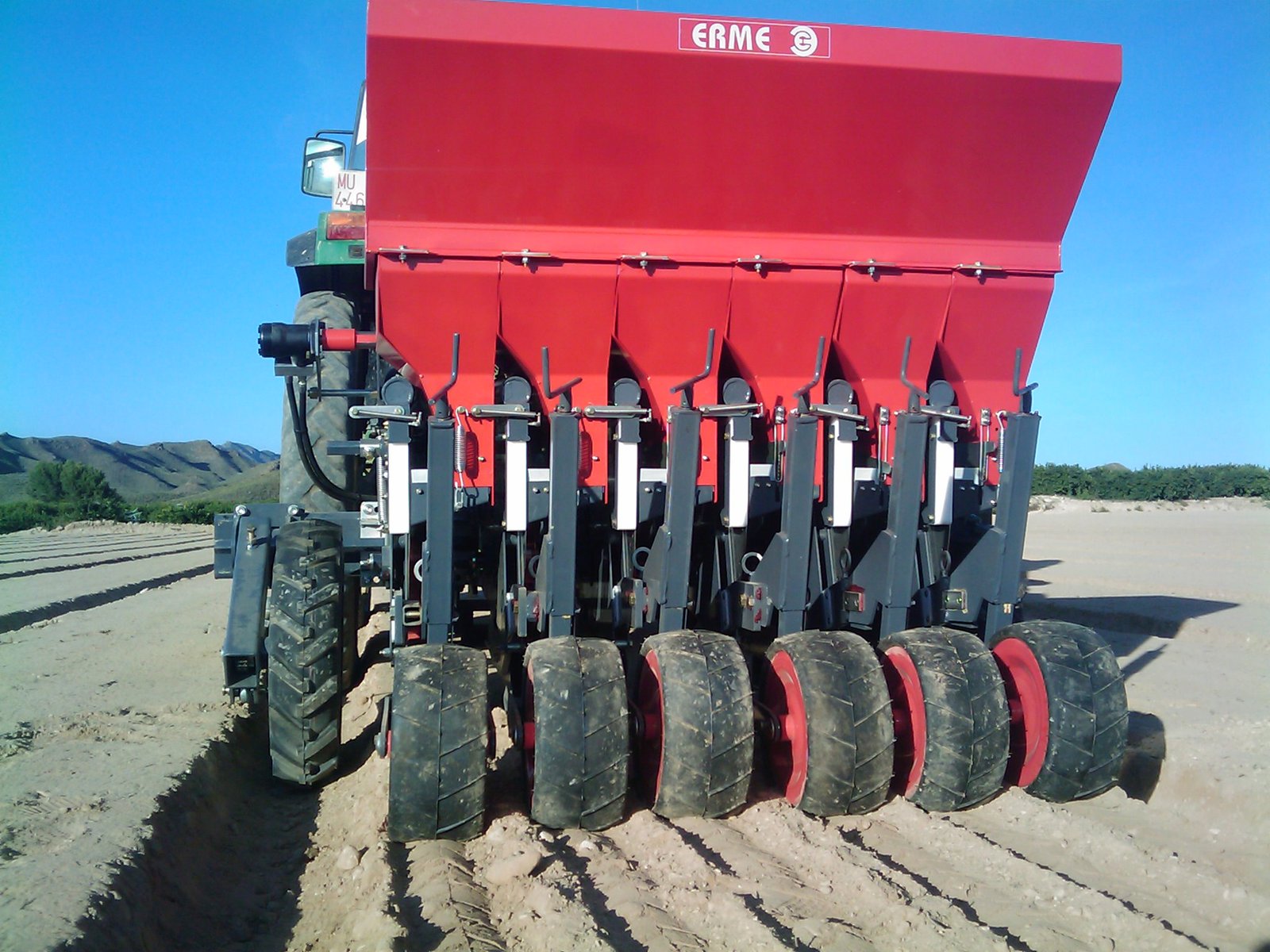

Planting depth adjustable with the rear blow up wheels (hard rubber wheels are optionnal).
Planting density adjustable with one central gear box
(standard 7 to 16 cloves/meter).
PTO driven: 400 to 540 rpm.
Nominal speed :2,5Km/h up to 3,5Km/h according to the density.

  •   3 rows 4 rows 5 rows 6 rows 8 rows
    LENGTH 2.00m 2.00m 2.00m 2.00m 2.00m
    WIDTH 2.20m 2.40m 2.85m 3.30m 4.30m
    HEIGHT 1.70m 1.70m 1.70m 1.70m 1.70m
    WEIGHT 900kg 1050kg 1200kg 1500kg 2100kg



Options for this product

Towed machine

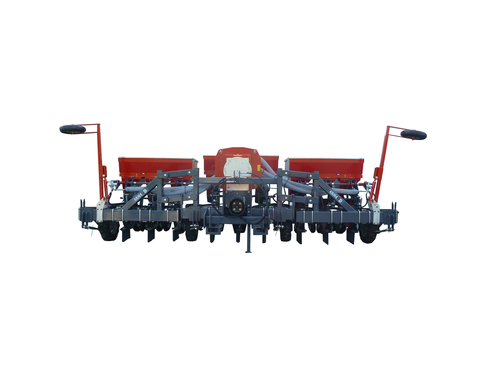

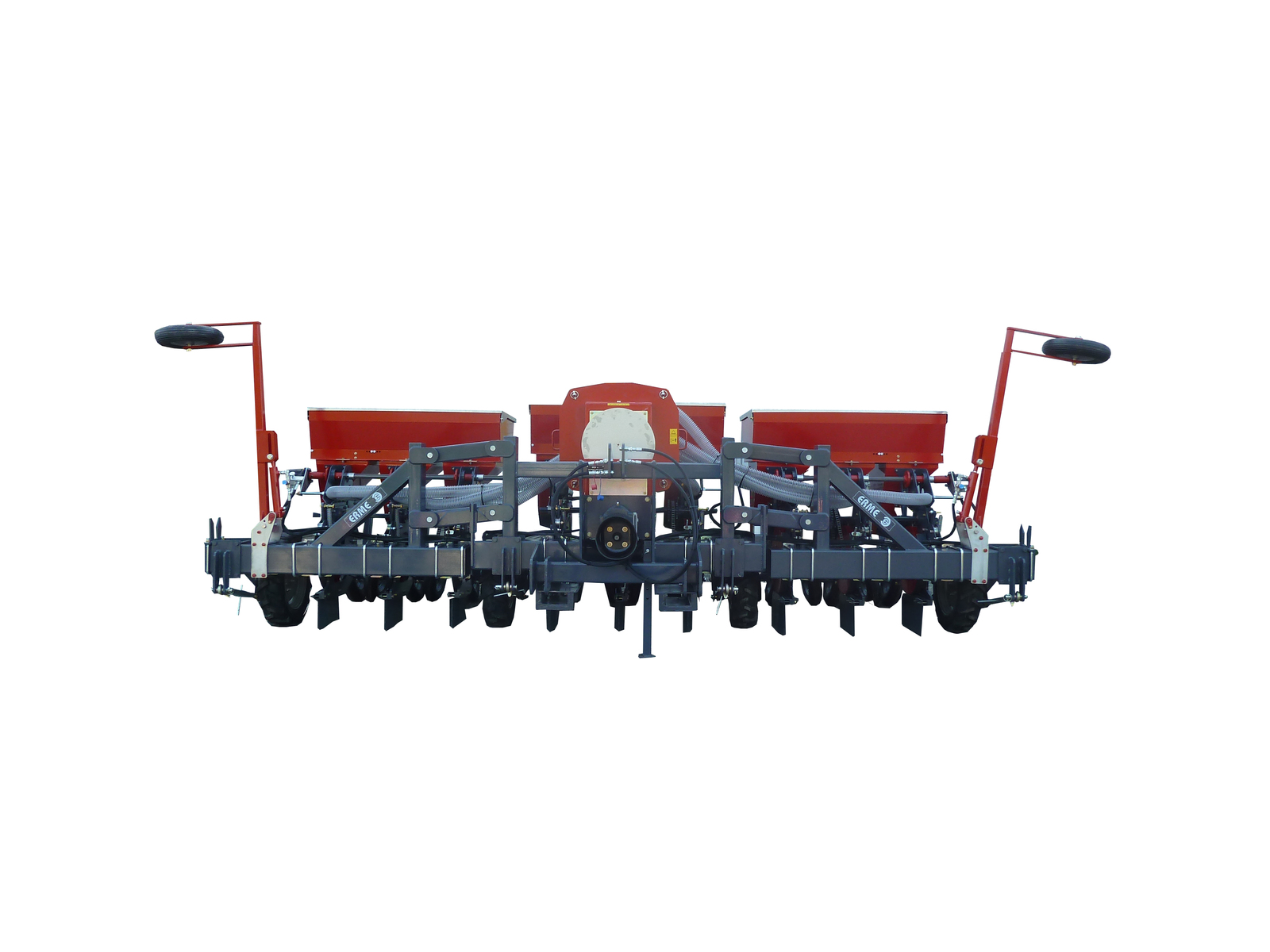

Wheel markers

Digital planter controller

Liquide spraying

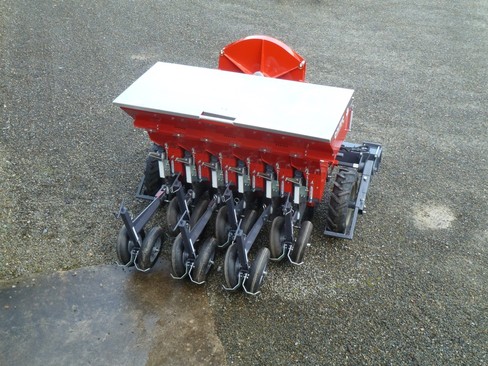

Narrow PLPS planting spacing's

Hard rubber wheels

Micro-granulator

Big volume hopper

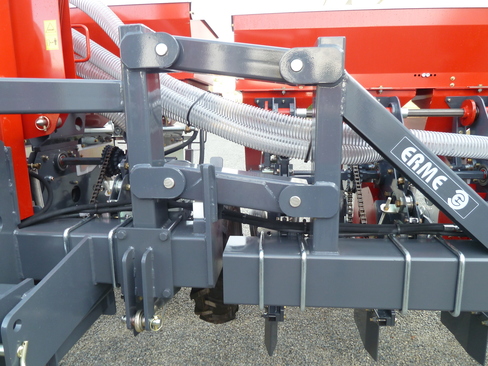

Wide parallelogram chassis

Hopper PVC tarpall
