Feeding belt

Ref. TAP

Solutions adapted to your needs, Modular systems for all your finishing tasks.

We can offer a wide range of feeding hopper belts enable to regulate the flow of your lines.

Caractéristiques

Several models are to chose from:

1) Type: TAP150
- Hopper volume ± 150L
- A fixed angle chassis with height adjustment, mounted on swivelling wheels.
- Input height ± 650mm
- Exit height ± 1500mm
- Ideal for manual filling


2) Type: TAP600
Hopper volume  ± 150L
-
A fixed angle chassis with height adjustment, mounted on swivelling wheels.
- Input height ± 850mm
- Exit height ± 2000mm
- Ideal for manual filling

3) Type: TAP1650
- Hopper volume  ± 1650L
-
A fixed angle chassis with height adjustment, mounted on swivelling wheels.
- Input height ± 1050/1400mm
- Exit height ± 1050/1700mm
- Ideal for filling with big bags / pallox.

4) Type: TAP3500
Hopper volume  ± 3500L
- A fixed chassis
- A transfer belt to feed the elevating belt
- An elevating belt with adjsutable angle

- Inlet height ± 1200mm
- Exit height ± 1000/2000mm
-
Ideal for filling with several big bags / pallox.

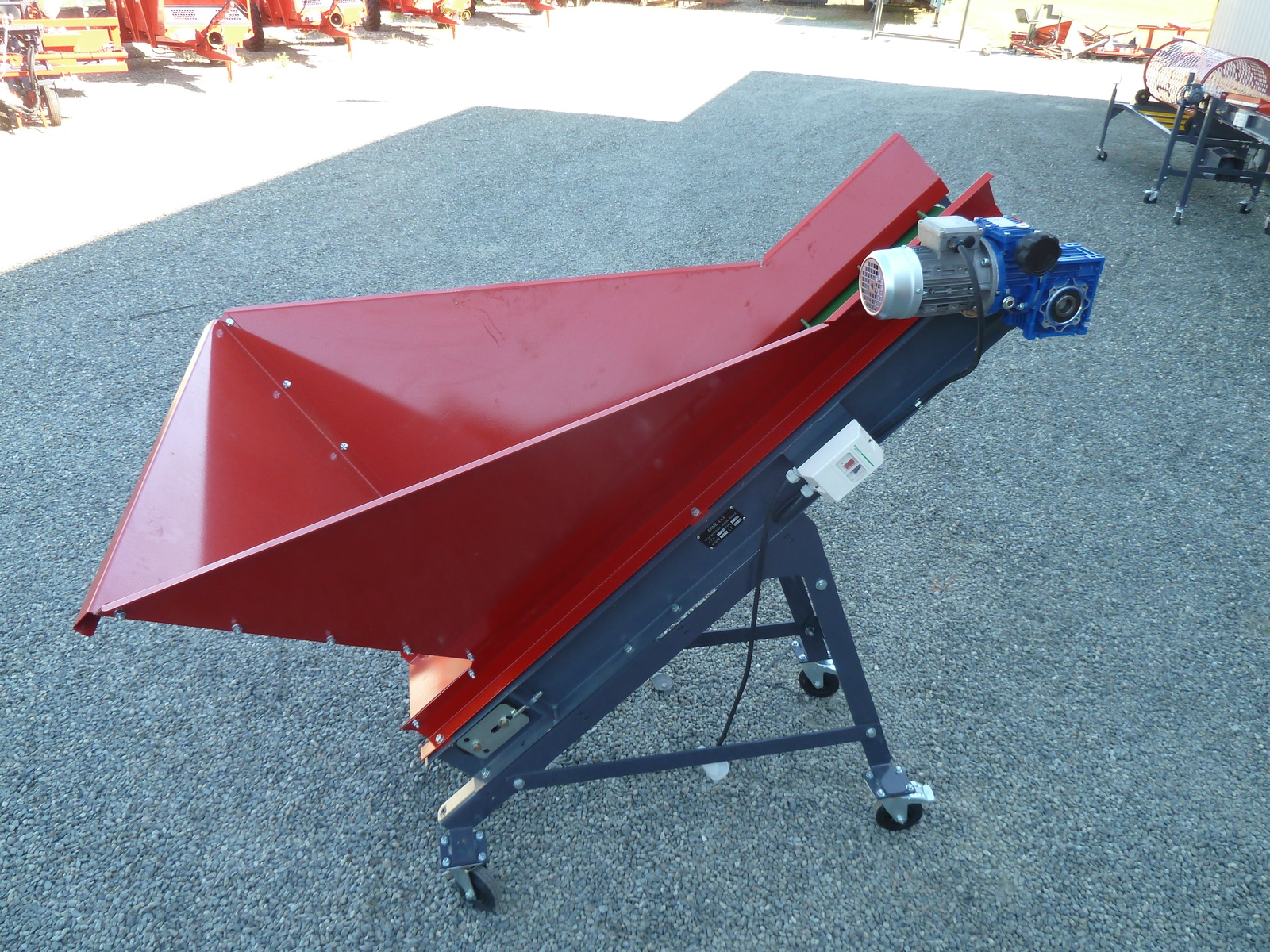

Each of our feeding belts is composed with:
- PVC ridged belts.
- Three phase moto variator
- Start/stop switch with thermal protection.
